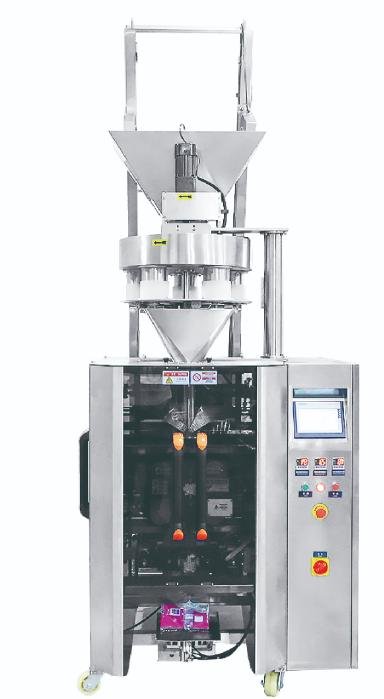

UF Series Automatic Vertical Packaging Machine(Measuring Cup Metering)
Uniflow UF series measuring cup vertical packaging machine with Mitsubishi PLC & Weinview touch screen. Volumetric cup filling system for granular food, supports multiple pouch styles, CE & IP65 certified, 10 preset product formulas for fast production switch.
Description
Introduction of UF Series Measuring Cup Vertical Packaging Machine
Our automatic vertical form fill seal packaging machine adopts mature volumetric measuring cup filling system, designed for granular dry food materials. It combines stable Mitsubishi PLC control and Weinview touch screen operation to simplify daily packaging work.
Core Machine Advantages
- Dual-language touch screen panel, custom multi-language interface available
- 10 storable product formulas for fast batch switching
- OMRON precise temperature control, ±2°C constant sealing temperature
- On-screen seal position & deviation adjustment, no production stop required
- Multiple sealing tooth options: cross grain, straight grain, twill, mesh
- CE certified electrical cabinet with IP65 waterproof & dustproof grade
- Compatible with flat bags, stand-up pouches, handle bags, punch pouches and triangular pouches
Measuring Cup Filling System Features
The volumetric measuring cup filling unit boasts simple structure, high packing speed and broad applicability. It carries low daily operation cost and fully meets food and pharmaceutical sanitary production standards, ideal for grains, nuts, seeds and similar granular products.
| Specifications | UF-420B | UF-520B | UF-720B |
|---|---|---|---|
| Model | UF-420B | UF-520B | UF-720B |
| Bag length | 60-300mm (L) | 80-400mm (L) | 100-480mm (L) |
| Bag width | 100-200mm (W) | 150-250mm (W) | 180-320mm (W) |
| Max width of roll film | 420mm | 520mm | 680mm |
| Packing speed | 5-60bags/min | 5-50bags/min | 5-50bags/min |
| Measuring range | 50g-1000g (According to product specific gravity) | 200g-2000g (According to product specific gravity) | 500g-5000g (According to product specific gravity) |
| Air consumption | 0.65Mpa | 0.65Mpa | 0.65Mpa |
| Gas consumption | 0.6m³/min | 0.7m³/min | 0.8m³/min |
| Power voltage | 220VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
| Power | 3Kw | 4Kw | 5Kw |
| Contour dimension | 1388Lx1116Wx1536H | 1795Lx1150Wx1650H | 1780Lx1350Wx1950H |
| Weight | 500Kg | 600Kg | 900Kg |
