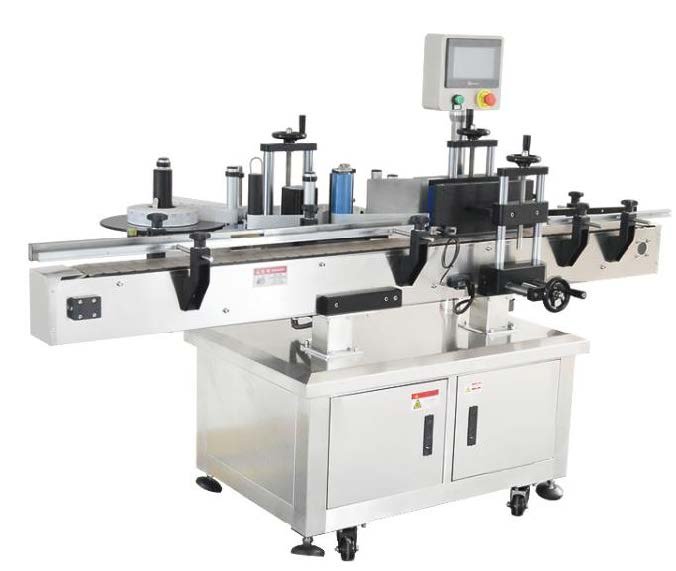

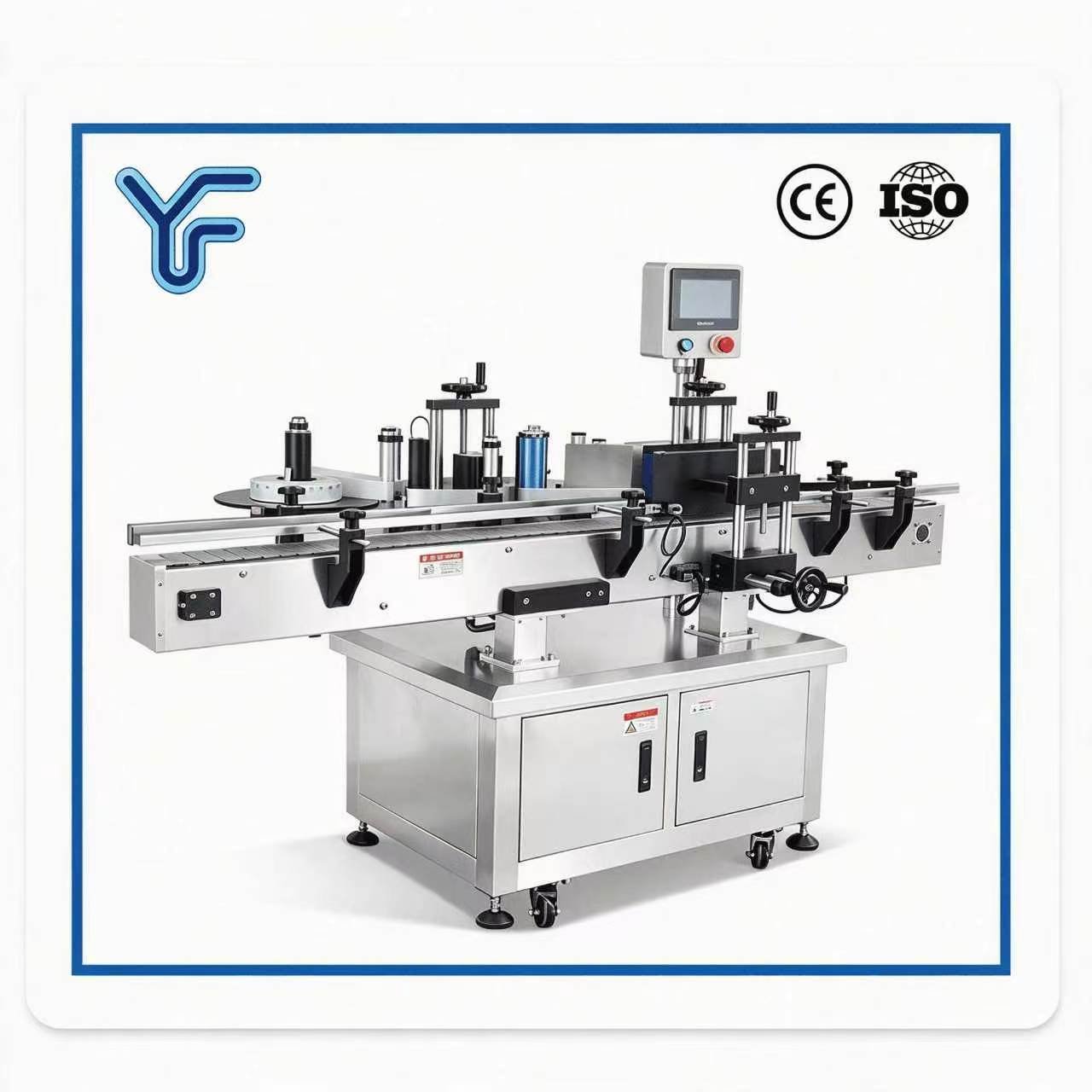

Round Bottle Labeling Machine
Our round bottle labeling machine UF-200 is designed for wrap-around labeling on round containers in food, pharmaceutical, cosmetic and daily chemical industries. Servo motor labeling head, PLC + touch screen control, labeling accuracy ±0.1mm, max speed 120 pieces/min. No parts change needed for different round bottle sizes, simple operation & maintenance.
Description
Pain Points of Round Bottle Labeling
Many manufacturers face labeling troubles: skewed labels, inconsistent sticking position, slow manual labeling speed, frequent part replacement when switching bottle sizes. Our round bottle labeling machine UF-200 solves these issues with servo-driven labeling head and belt-type labeling system. It delivers ±0.1mm labeling precision, no need to swap parts for different round bottles to cut downtime.
Suitable Industries & Bottle Application
- Industries: Food, pharmaceutical, cosmetic, daily chemical
- Application: Wrap-around labeling for round bottles
Main Features

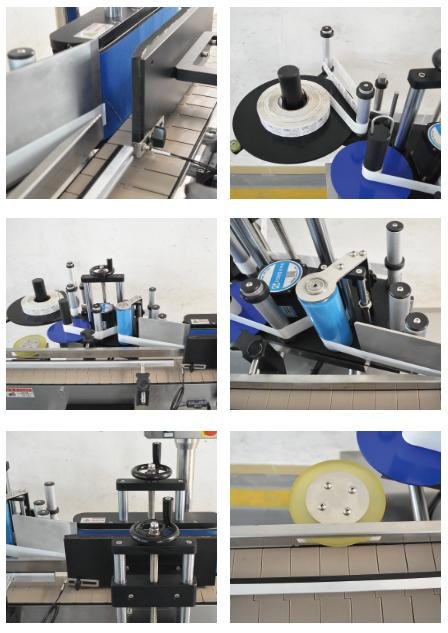

- Belt-type labeling system, stable and high-speed operation for multiple bottle sizes
- Servo motor driven labeling head, labeling speed up to 120 pieces per minute
- PLC control + touch screen interface, easy operation and real-time monitoring
- ±0.1mm labeling accuracy, neat wrap-around label placement
- No spare parts replacement required when switching different round bottle sizes
- Simple structure, easy operation and daily maintenance
Specifications
| Specifications | Details |
|---|---|
| Model | UF-200 |
| Labeling speed | Max 120 pieces/min |
| Labeling accuracy | ±0.1mm |
| Max label width | 100mm (can be customized) |
| Applicable product size | φ30-φ80mm (can be customized) |
| Applicable inner diameter of paper | φ76mm |
| Applicable outer diameter of paper | Max φ350mm |
| Dimension | 2000×800×1650mm |
| Voltage | 220V 50Hz 1000W |
| Weight | 250KG |
FAQ
Q: What labeling accuracy can this round bottle labeling machine reach? A: Labeling accuracy ±0.1mm for round bottle wrap labeling.
Q: What is the max production speed of UF-200? A: Maximum labeling speed up to 120 pieces per minute.
Q: Do I need to change machine parts when switching different round bottle sizes? A: No part replacement required, flexible for φ30~φ80mm round bottles, custom size available.
Q: What kind of bottles is this wrap-around labeler suitable for? A: Round bottles for food, pharma, cosmetic and daily chemical products.
Q: Is label width customizable? A: Yes, max label width 100mm, custom service available.
