Flat Surface Labeling Machine
Uniflow UFTB-220 automatic flat labeling machine with servo motor & Mitsubishi PLC, ±1mm high labeling accuracy, fits boxes, envelopes and sheets, multiple optional separators and safety accessories.
Description

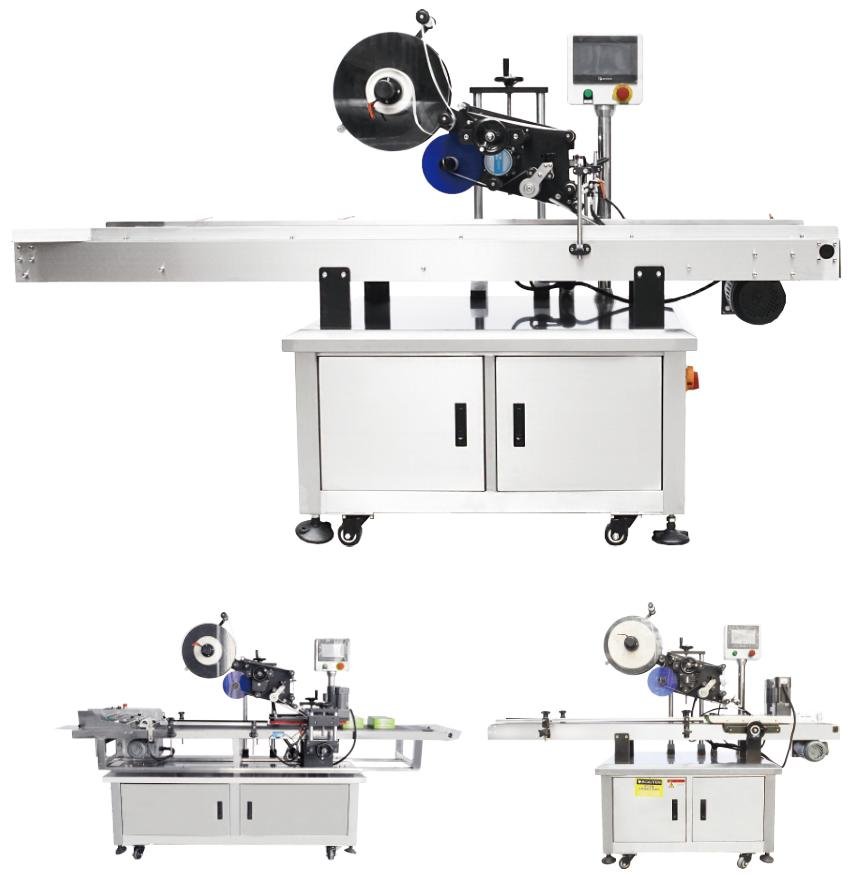

UFTB-220 Automatic Flat Surface Labeling Machine Introduction
Our flat labeling machine is equipped with world-famous high-precision servo motor labeling head, realizing full closed-loop control and ultra-fine indexing to deliver high labeling accuracy.
It adopts double-stage clutch design to keep stable label tension, which greatly improves labeling precision during continuous operation.
The control core is Mitsubishi PLC, matched with branded touch screen that supports bilingual Chinese & English operation for simple human-machine interaction.

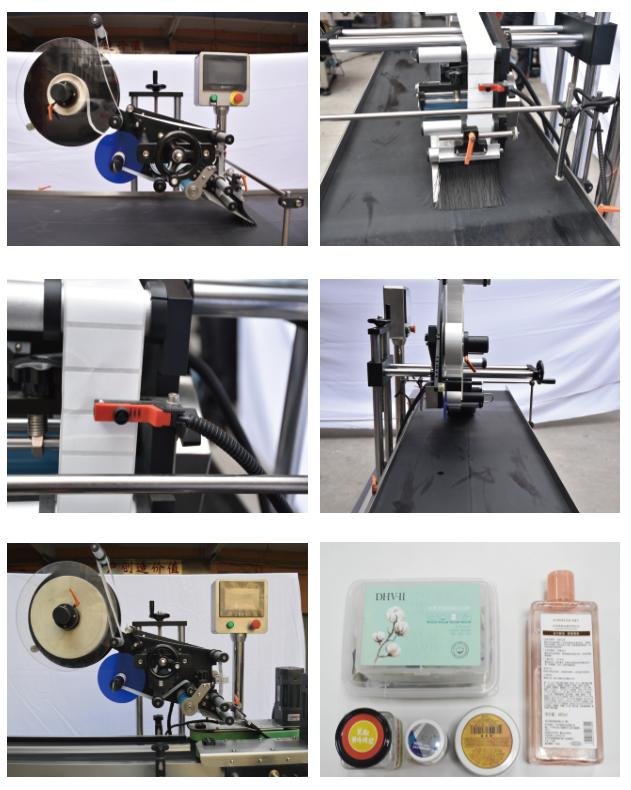

Standard belt conveyor is installed for labeling all kinds of flat products. Optional auxiliary accessories include product clamping fixture and labeling mold to achieve ultra-precise labeling effect.
An optional sheet separator is available for automatic sorting of single paper, envelopes, greeting cards and cartons with fast and stable performance.
Customers can also choose full enclosed safety frame and SCHMERSAL safety switch to meet industrial safety production standards.
Core Advantages
- Servo closed-loop control, ultra-high labeling accuracy up to ±1mm
- Double-stage clutch for constant label tension, no label wrinkling or deviation
- Mitsubishi PLC + bilingual touch screen, stable and easy operation
- Wide compatibility for flat boxes, paper sheets, envelopes and cards
- Multiple optional accessories: separator, clamping mold, safety cover, safety switch
- Customizable label width and product size to fit different production lines
Technical Parameters
| Specifications | UFTB-220 |
|---|---|
| Model | UFTB-220 |
| Labeling speed | 10-40 meters/min |
| Labeling accuracy | ±1mm |
| Max label width | 100mm (customizable wider width) |
| Applicable product diameter | φ30-φ80mm (customizable) |
| Inner diameter of label roll | φ76mm |
| Max outer diameter of label roll | φ300mm |
| Air source requirement | 4-6kgf/cm², 30L/min |
| Overall dimension | 2000×800×1500mm |
| Voltage & Power | 220V, 50Hz, 2000W |
| Net Weight | 250kg |
