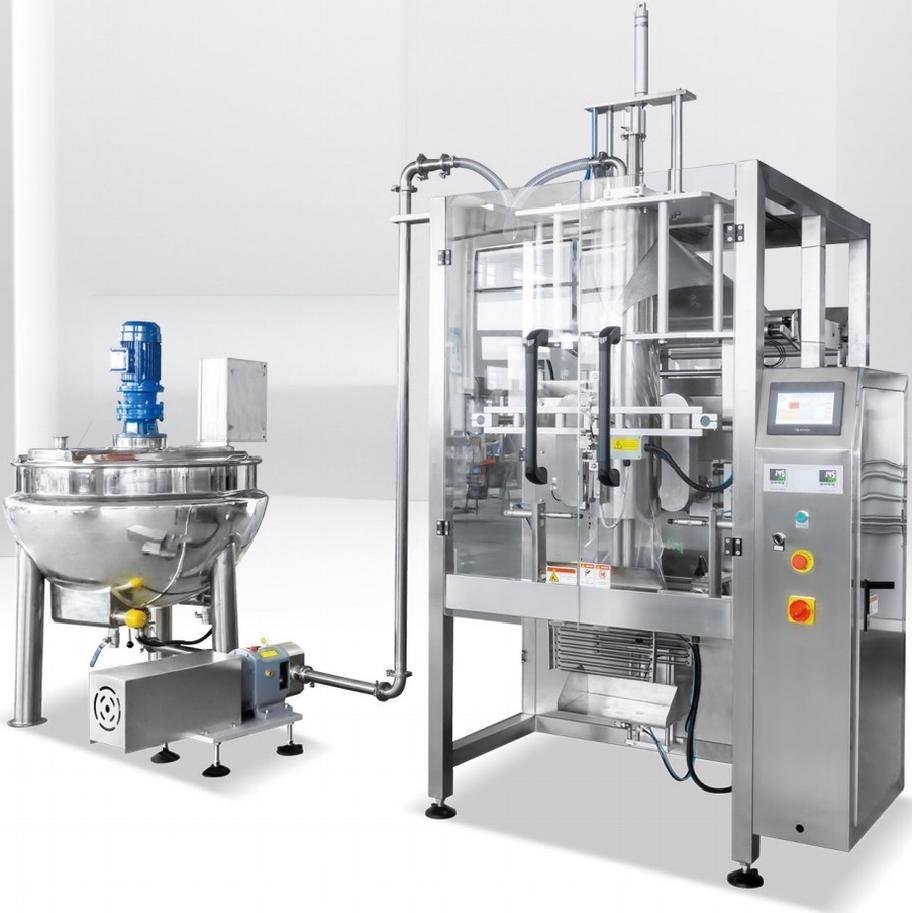

UF‑730Y Automatic Sauce Packing Machine

Description

Our UF‑730Y sauce packing machine is a vertical automatic pouch packaging equipment for thick paste and particle‑containing sauce products. As one important unit under our Packaging Processing Lines, it adopts servo rotor pump metering method, equipped with insulated mixing storage tank to realize stable packaging for various viscous sauces.

Product Application

Suitable Materials
This machine is suitable for packing various thick paste and particle‑mixed sauces, including chili sauce, mayonnaise, salad dressing and other seasoning sauces.

Key Features

1. Imported servo film‑pulling system together with highly sensitive sensor to achieve precise positioning.
2. Multi‑functional alarm protection system, minimizes material loss and ensures safe machine operation.
3. Servo rotor pump metering structure, perfect for thick paste and particle‑containing sauce materials.
4. Matched with double‑layer insulated mixing and storage tank, suitable for special and mixed‑type sauce products.

Technical Parameters

Item	Specifications
Model	UF‑730Y
Bag Length	150‑450mm
Bag Width	100‑350mm
Max Film Width	730mm(Max.)
Packing Speed	1300‑2000 bags/hour
Gas Consumption	0.8m³/min
Working Pressure	0.8 Mpa
Working Power	220V 50Hz single phase /380V 60Hz three phase, 6.5Kw
Package Film Material	OPP/CPP, OPP/PE, PE/PE etc.
Machine Dimension	3965(L) ×2366(W) ×1963(H) mm
Net Weight	1350 kg
Optional Function	Labeling, TTO printer, venting etc.

Optional Customization

Available optional modules: labeling unit, TTO thermal transfer printer, venting function and more.

Get Your Solution

If you are looking for reliable automatic pouch packing equipment for thick sauce or particle‑mixed paste, please contact our sales page for detailed quotation and professional project consultation.
