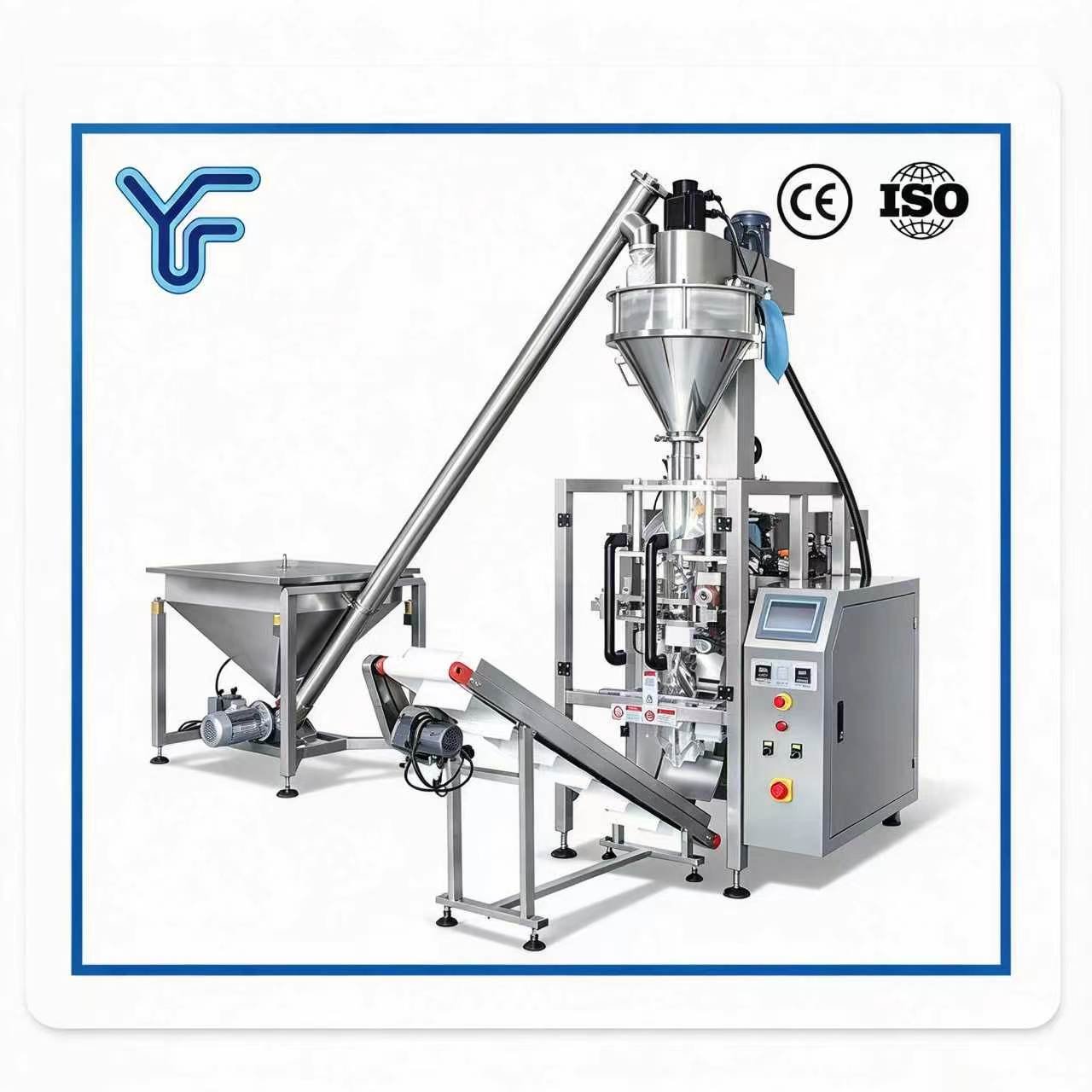

Vertical Form Fill Sealing Machine
VFFS Vertical Form Fill Seal Packaging Machine, full automatic bag forming filling sealing, dual servo control, GMP stainless steel body. Multiple pouch styles for food granule, pet food, hardware packing. Support material test, various models from VFFS-320 to VFFS-1020.
Description
What is VFFS?
VFFS stands for Vertical Form Fill Seal Packaging. The letter “V” represents the vertical type bagger system, which differs from horizontal packaging machines. The first “F” means the machine Forms roll film into pouches, the second “F” is to Fill materials into bags via metering devices, and “S” refers to Sealing.VFFS machines can be fitted with different dosing assemblies to pack spice powder, snacks, seeds and other goods into pouches.A VFFS vertical form fill seal packing machine is an automated assembly-line packaging system widely used in food and many other industries.
Machine Core Features
- New optimized mechanical design with reasonable structure and advanced technology.
- English & Chinese touch screen, PLC control and servo motors. Parameters can be adjusted without stopping the machine.
- Fully automatic bag forming, dosing filling, sealing, coding, conveying and counting are completed in one cycle, greatly saving labor cost.
- Stainless steel machine body, meets GMP standards, suitable for high-standard food packaging.
- Independent horizontal & vertical temperature control, compatible with composite film and PE packaging film.
- Multiple pouch styles available: pillow bags, angle bags, hang-hole bags, vertical bags, punched bags and more.
- Multiple automatic alarm protection functions to reduce component wear and tear.
- Dual servo motors deliver accurate film pulling positioning and faster running speed.
- Independent temperature control system, temperature precision up to ±1°C.
Technical Parameters
| Models | VFFS-320 | VFFS-420 | VFFS-520 | VFFS-720 | VFFS-820 | VFFS-1020 |
|---|---|---|---|---|---|---|
| Packing Speed | 5-70bags/min | 5-60bags/min | 5-50bags/min | 5-40bags/min | 5-30bags/min | 5-20bags/min |
| Bag Length | 50-200mm | 80-300mm | 100-400mm | 100-450mm | 100-500mm | 100-600mm |
| Bag Width | 50-150mm | 50-200mm | 100-250mm | 100-350mm | 100-400mm | 100-500mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm |
| Filling Range | 50-800ml | 150-1200ml | 200-2000ml | 250-4000ml | 350-5000ml | 450-6000ml |
| Film Width | Max.320mm | Max.420mm | Max.520mm | Max.720mm | Max.820mm | Max.1020mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Air Consumption | 0.3m³/min 0.65MPa | 0.3m³/min 0.65MPa | 0.4m³/min 0.65MPa | 0.4m³/min 0.65MPa | 0.5m³/min 0.65MPa | 0.5m³/min 0.65MPa |
| Voltage | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz |
| Power | 2.0kw | 2.2kw | 4kw | 4.5kw | 5.3kw | 6.5kw |
| Machine Dimensions | 11782129cm | 13295136cm | 149108149cm | 172126182cm | 180160200cm | 180190210cm |
| Machine Weight | 350kg | 550kg | 750kg | 850kg | 900kg | 950kg |
Notes:
- Additional models and specifications available upon request.
- Packing speed varies depending on product characteristics, bag size, film material and machine configuration. Actual performance subject to on-site testing.
- Specifications are subject to change based on configuration and material characteristics.Technical Notes: The specifications listed on this page are based on typical machine configurations and are provided to assist with equipment selection and solution evaluation. Actual machine performance may vary depending on product characteristics, bag size and format, packaging film material, machine configuration, and operating conditions. Packing speed, filling accuracy, and overall output will be confirmed during project discussion and material testing, ensuring the equipment is properly matched to each customer’s application.
Applications
The Vertical Form Fill Seal Packaging Machine can pack a wide variety of different products:
Food Industry
peanuts, popcorn, jelly, dates, garlic, beans, grains, soybeans, pistachios, walnuts, rice, corn, sunflower seeds, melon seeds, coffee beans, ground coffee, potato chips, banana chips, plantain chips, chocolate ball, shrimp, sweet candy, sugar, tea, herbs, Chinese medicine, puffed food, dry food, frozen food, frozen vegetables, frozen pea, frozen fish ball, frozen pie, and other granule products.
Pet Food Industry
dog food, bird food, cat food, fish food, poultry food and etc.
Hardware Industry
plastic pipe elbows, nails, bolts and nuts, buckles, wire connectors, screws and other construction products.
What Pouch Styles can VFFS be Formed?
Our VFFS machine can produce a wide variety of pouch styles according to your product shape and requirements:
- Pillow Bag (Back Center Seal)As the name of the Pillow Bags (Back Center Seal), it forms the shape of a pillow. Once filled, it balloons from the middle and flattens out at the top and bottom seals.
- 3-sided Seal Bag Three side seal bags allow more room for graphics with the elimination of the center back seal. Case packing and cartoning are simple and convenient with this bag style. Also known as a flat pouch, the 3 Side seal is Form Fill Seal Packaging to alternative of pre-made pouch.
- Pillow Gusset Bag Gusset Bags are flexible bags with an added piece of fabric called a “Gusset” to expand the bags’ original capacity. Moreover, the Gusset can create more volume and strengthen the bag’s structure. A Gusset Bag’s three basic measurements are its width, height, and bottom Gusset.
- Block Bottom Seal Stand-up Block Bottom Bags, central or offset back seal, whole range of reclosable features available. It combines the benefits of a traditional side gusseted bag and stand-up pouch and rolls it into a package that sits narrow on the shelf, doesn’t tip over, and squares up like a box.
- Continuous Bags Continuous multiple pouch chained in a row. The number of serialized bags can be set as required.
- Center Seal Stick Center Seal Stick is also a form of back center seal packaging, which is usually a larger ratio of length to width.
Frequently Asked Questions
Q1: What products can VFFS vertical form fill seal machine pack?A: It can pack granules, snacks, pet food, hardware parts, powder, beans, seeds and more, widely used in food, pet food and hardware industries.
Q2: Can the machine produce different pouch types?A: Yes. It supports pillow bag, gusset bag, 3-side seal bag, block bottom bag, continuous bags and center seal stick pouches.
Q3: Can I adjust parameters without stopping the machine?A: Yes. PLC + dual servo motor system supports online parameter adjustment, no need to shut down the machine.
Q4: Does this machine meet GMP food grade standard?A: Yes. Main body adopts stainless steel construction, meets GMP requirements for food production.
Q5: What is the temperature control accuracy?A: Independent temperature control system, precision reaches ±1°C, ensures stable sealing quality.
Q6: Can you customize machine configuration for my products?A: Yes, different dosing units and optional functions are available. We support sample testing before order.
