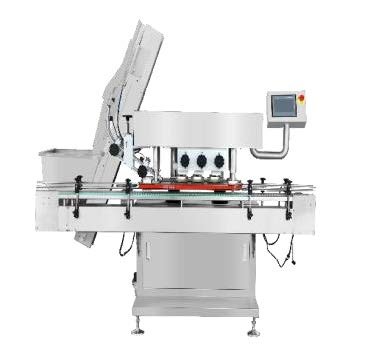

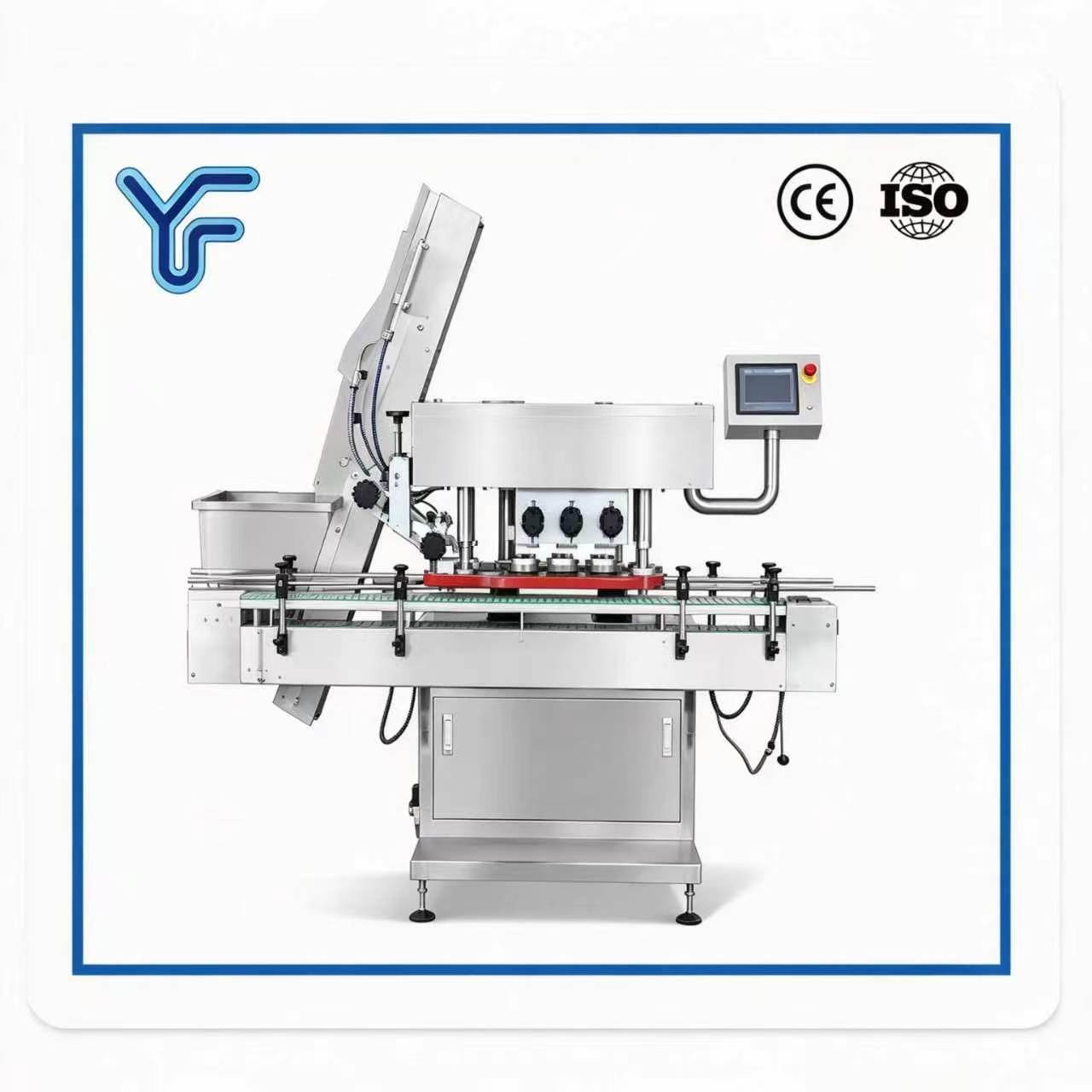

Automatic Capping Machine UF-XG-160B
- The cap management system organizes caps, delivering caps with the opening facing upward continuously to the cap placement track. Bottles transported from other production line equipment to the bottle feeding track enter the cap placement area. After the capping heads on each capping shaft of the main machine cam mechanism grasp the caps, the caps are gradually placed onto the bottle mouths as the capping shafts descend, and then enter the main star wheel for capping operations.
- This automatic rotary capping machine is ideal for sealing various containers in food, beverage, pharmaceutical, and cosmetic industries, ensuring stable and efficient capping performance.
Description
| Parameter | Details |
|---|---|
| Production Capacity | 50–150 bottles per minute |
| Bottle Specifications | Cap diameter: 20mm–75mm
Bottle height: 50mm–150mm Bottle volume: 20–500ml Applicable bottle shapes: round, oval, square, flat square |
| Power Supply | AC220V, 50Hz |
| Power Consumption | 1.2kW |
| Air Pressure | 0.6Mpa |
| Machine Dimensions | 2500mm × 1100mm × 1850mm |
| Hopper Dimensions (L×W×D) | 600mm × 500mm × 550mm (approx. 80L capacity) |
| Net Weight | 850KG |
| Rejection Device | Aluminum foil detection sensor (no aluminum foil rejection) |
Key Features & Benefits
- High-Speed Capping: 50–150 bottles/minute to meet large-scale production demands.
- Wide Compatibility: Works with round, oval, square, and flat square bottles (20–500ml).
- Stable Operation: Cam-driven capping shafts ensure precise cap placement and tightening.
- Intelligent Detection: Built-in aluminum foil sensor automatically rejects bottles without aluminum foil, improving product quality control.
- Compact Design: Space-saving footprint (2500×1100×1850mm) suitable for integrated production lines.
