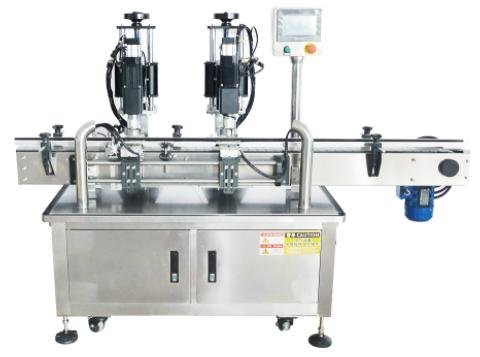

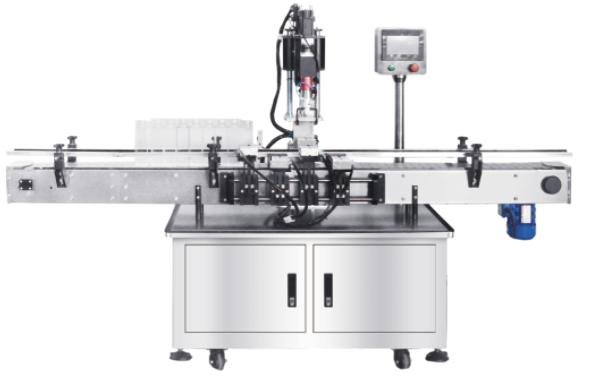

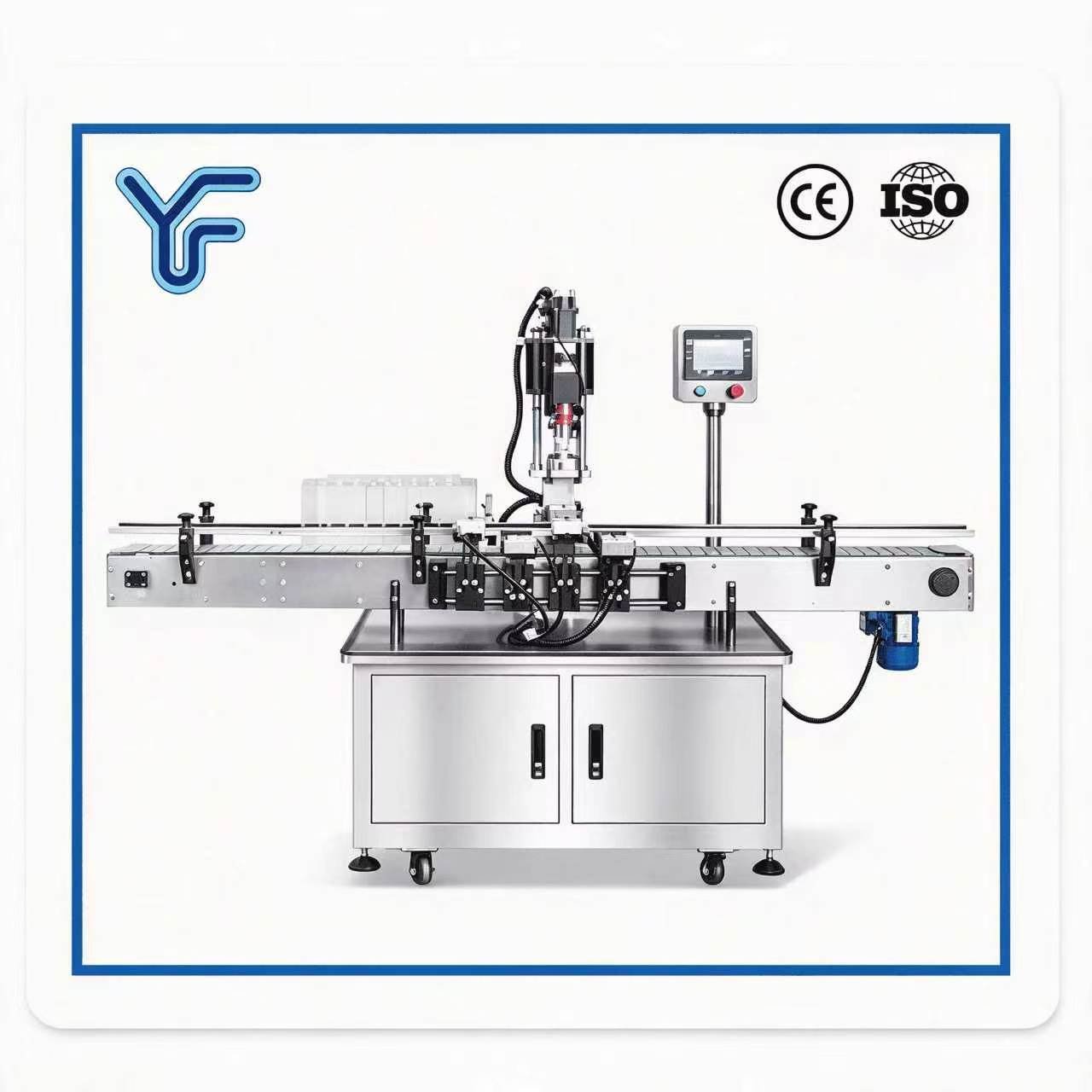

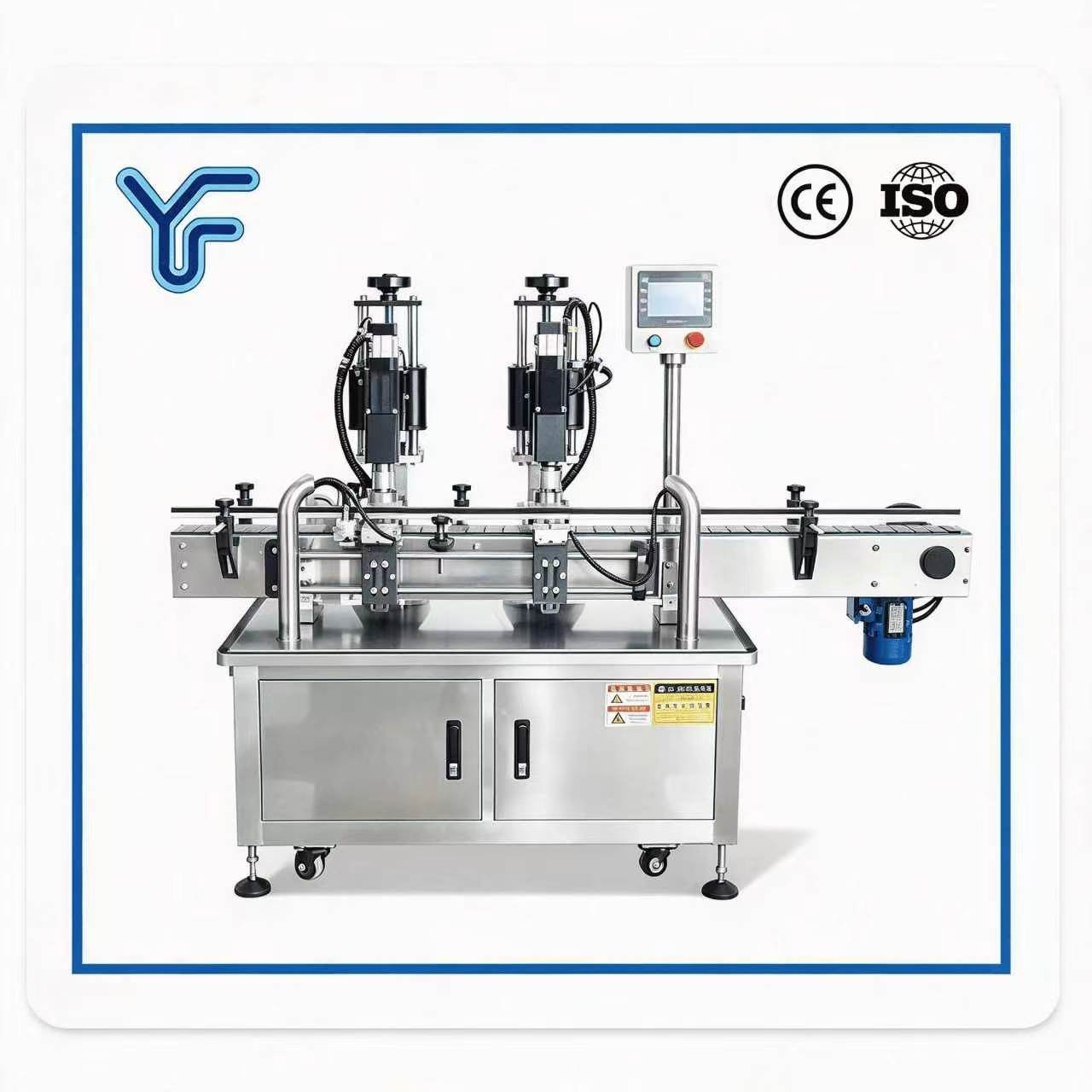

Single/Double Servo Capping Machine
The fully automatic robotic capping machine is mainly used for tightening threaded plastic caps and metal caps on glass bottles, making it suitable for a wide range of automated packaging applications.
The machine adopts a pneumatic gripper balancing capping structure, which ensures even force distribution during the capping process, improving sealing consistency and reducing cap damage.
It is equipped with a servo-driven automatic cap picking system and a servo torque-controlled capping system, ensuring precise torque control, stable performance, and high efficiency in continuous production.
At the same time, this automatic capping machine features a modern appearance, compact structure, reasonable design, stable operation, low noise, and excellent capping quality.
This bottle capping machine is widely applicable to mass production in industries such as:
- Daily chemical products
- Food & beverage
- Pharmaceutical manufacturing
According to customer requirements, the machine can be optionally equipped with an automatic cap sorting system and cap feeding system, allowing seamless integration into a fully automatic packaging line.
Description
Key Features of Automatic Capping Machine
- User-Friendly HMI & PLC Control
Equipped with an intuitive Human-Machine Interface (HMI) and advanced PLC control system, this automatic capping machine ensures precise operation and easy parameter setting. - Variable Speed Control for Flexible Production
Integrated frequency inverter control allows adjustable production speed, making this servo capping machine suitable for different packaging line requirements. - Automatic No Bottle, No Capping Function
The machine features a smart no bottle, no capping system, automatically stopping operation when no bottles are detected, reducing waste and improving efficiency. - GMP-Compliant Stainless Steel Construction
Built with SUS304 / SUS316L stainless steel, this bottle capping machine meets strict GMP standards, ensuring durability, hygiene, and suitability for food and pharmaceutical applications.
Specifications Details Model UF-JXS-1 Cap feeding system Air claw cap feeding (servo control) Capping system Air claw capping (servo control, controllable torque) Capacity (bottle/minute) 10-20 (Depending on the cap) Bottle cap size (mm) Can be customized Power (kw) 2.2 Supply power 220V/50-60Hz (can be customized) Dimension 2000×1100×1800mm Weight 350KG
