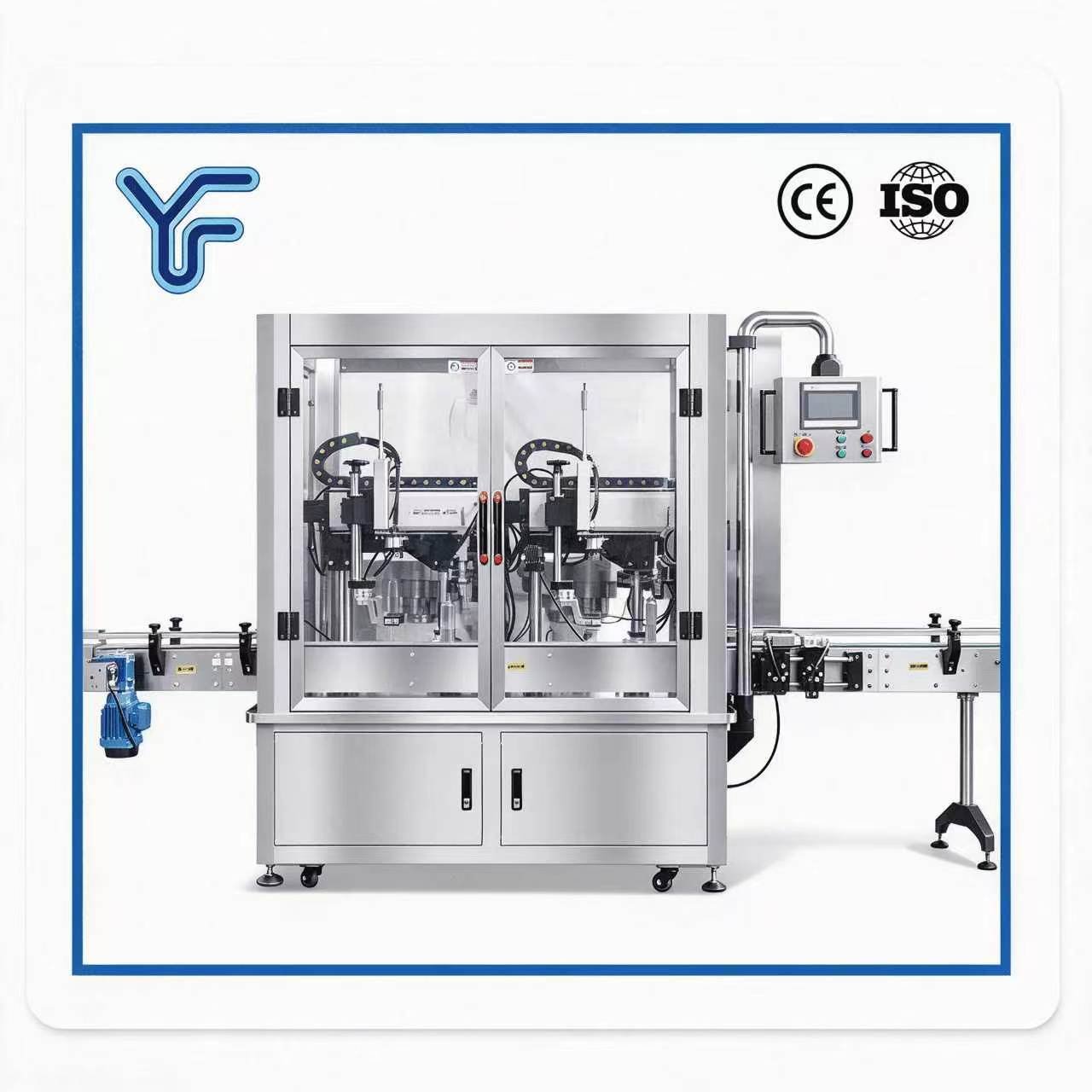

Inline tracking capping machine UF-150 servo screw capper solve moving bottle capping offset problem, CE ISO certified automatic bottle capping equipment Uniflow
Various plastic bottles for liquid and granule products, suitable for automatic filling and capping machine from Uniflowpack

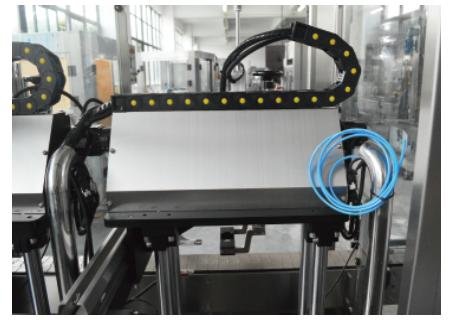

Close-up detail of inline tracking automatic screw capping machine head, bottle capping mechanism structure, Uniflowpack packaging machinery component

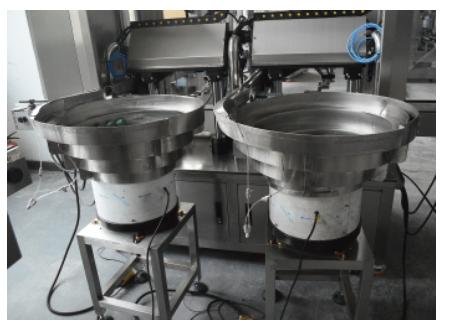

Dual vibration cap feeding bowl for automatic screw capping machine, cap sorting vibrating feeder equipment, Uniflowpack packaging machinery parts

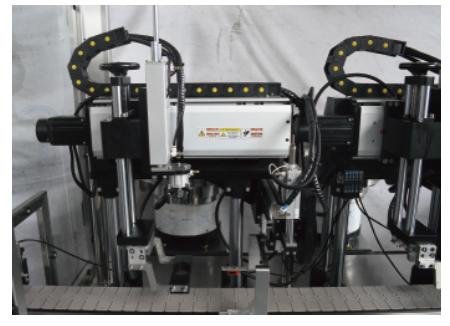

Dual-head mechanism close-up of inline tracking automatic screw capping machine, capping unit structural detail, Uniflowpack packaging equipment
Capper

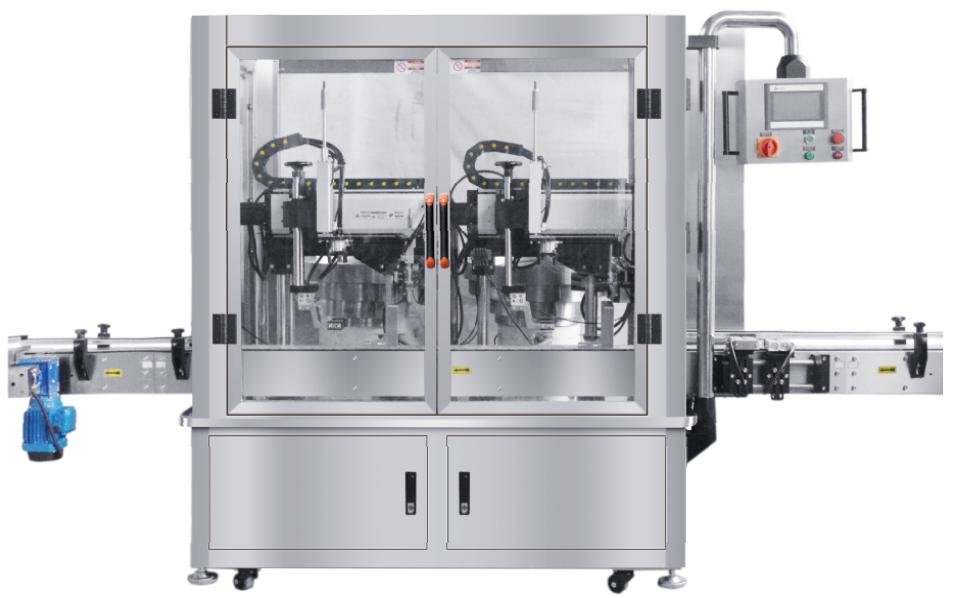

UF-150 Overview of Inline Tracking Capping Machine

Our UF-150 inline tracking capping machine is servo driven, designed to track moving bottles on conveyor without stopping. Ideal for food, beverage, cosmetic & pharmaceutical screw cap packaging lines. It fixes loose caps, cap tilt and low speed issues, with 30~60 bottles per minute output, cap size 20-80mm. We support on-site bottle test before order.

Category:

Description

Pain Points of Traditional Capping & Our Solution

Many bottle packaging lines suffer from frequent problems：bottles must stop for capping to cause low throughput, tilted caps, inconsistent torque, bottle jamming. Uniflow UF-150 inline tracking capping machine uses multi-axis servo tracking technology. The capping heads follow bottles while they keep moving on conveyor, no bottle stop required. It keeps stable torque, reduces cap leakage and rejects unqualified caps automatically.

Suitable Industries & Material

Fit for round bottles with screw caps in these industries: beverage, edible oil, cosmetic lotion, liquid medicine, daily chemical. Bottle material: PET, glass, HDPE plastic bottle. Cap types: plastic screw cap, pump cap, tamper evident cap.

Machine Advantage

  1. Servo tracking capping head, no bottle stop, higher line speed
  2. Torque adjustable, consistent tightness to avoid liquid leakage
  3. Full stainless steel frame, easy wipe and clean, meet GMP standard
  4. Touch screen operation, simple parameter setting
  5. Safety transparent protective cover, reduce accident risk

Specifications

Specifications Details
Model UF-150
Supply power (V/Hz) 380V/50Hz
Capacity 30-60 (Depending on bottle and cap type)
Power (kw) 8
Air pressure 0.6-0.8MPa
Cap size (mm) 20-80
Dimension (L×W×H) (mm) 3000×1100×1900
Weight (kg) 650

FAQ

  1. Q: Does this inline tracking capper need to stop bottles when capping? A: No. Servo capping heads track bottles moving on conveyor continuously, no bottle stopping.
  2. Q: What cap size can UF-150 handle? A: 20mm to 80mm screw caps, including pump caps and tamper caps.
  3. Q: Can I test my bottles at your factory before purchase? A: Yes, send your bottles and caps, we run free trial test and provide test video.
  4. Q: Is the machine stainless steel and easy for cleaning? A: Main contact parts are stainless steel, easy cleaning, comply with GMP for food & pharma.
  5. Q: What if cap tilt or loose cap occurs during running? A: Torque and tracking speed adjustable on touch screen; machine can alarm for bad caps.
