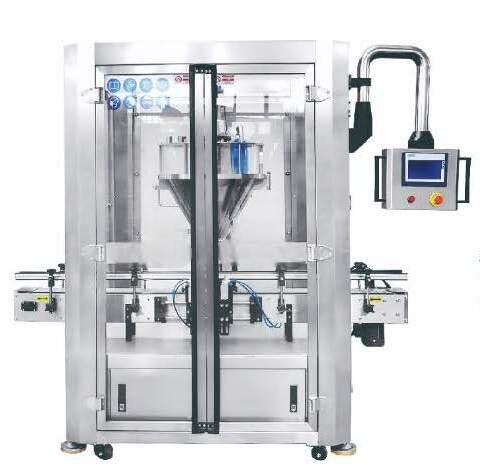

Automatic Screw Metering Filling Machine
Automatic Screw Metering Filling Machine - Image 2

Automatic Screw Metering Filling Machine

Based on our long-term practical experience in powder canning, this filler is newly developed by our company, abandoning the traditional rotary turret can feeding design.
Equipped with a single-row structure and our original innovative can feeding system, it delivers superior filling accuracy while eliminating the hassle of difficult cleaning associated with conventional rotary turret designs. This machine is specially engineered for high-precision powder filling and metering.
It can be integrated with other equipment to form a complete automatic canning production line. Widely applicable for filling milk powder, protein powder, chicken powder, glucose, rice flour, cocoa powder, solid beverages and other powdered products.
Category: Tag:

Description

Features

This is a newly designed powder filler that moves beyond traditional rotary turret can feeding concepts. Featuring a single-row layout and our patented can feeding system, it delivers exceptional filling precision and resolves the cleaning difficulties common to conventional rotary designs. The unit is dedicated to high-accuracy filling and metering tasks. It can be combined with other machines to build a full canning production line, ideal for canning milk powder, protein powder, chicken powder, glucose, rice flour, cocoa powder, solid beverages and similar products.

Application

Tailored for granular materials and ultra-fine powders, this equipment is widely used across the food industry. It perfectly suits the canning of milk powder, glucose, protein powder, coffee powder, rice flour, milk tea powder, seasoning powder and more.

 Specifications 参数值
 Model UF-GEF-50D
 Container Size φ30-160mm , H50-260mm

Metal cans, glass jars, plastic cans, paper canisters, etc.
 Filling Weight 10-5000g（ Change screw specification）
 Filling Accuracy ≤500g , ≤±1%；> 500g , ≤±0.5%Depends on the feature of product
 Filling Speed  20-40 bottles/min
 Power 3P AC208-415V 50/60Hz
Air Supply 6kg/cm² 0.05m³/min
Total Power 2.3Kw
 Total Weight 350kg
 Overall Dimensions 2000×1070×2120mm
Hopper Volume 50L
