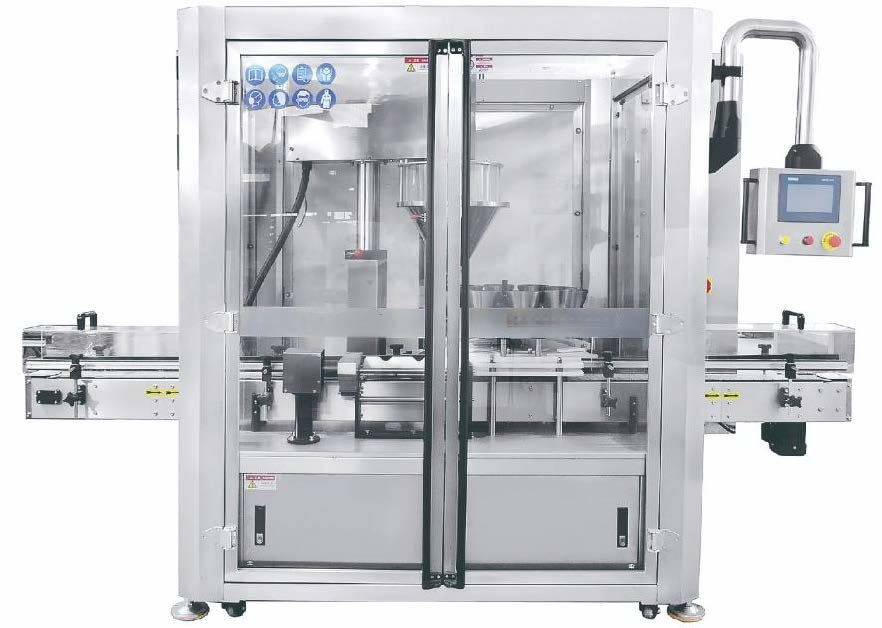

Rotary Powder Filling Machine
This automatic powder filling machine is designed in full compliance with GMP standards. It can be integrated with bottle unscramblers, capping machines, labeling machines and other units to build a complete production line. It is ideal for filling powdered materials across food, pharmaceutical, daily necessities and other industries, such as milk powder, condiments, talcum powder, flour, medicinal powder, tooth powder, milk tea powder, pearl powder, nutritional powder, meal replacement powder, pesticides and monosodium glutamate.
The entire machine frame is constructed from 304 stainless steel. All motors, cylinders, electrical parts and pneumatic components are sourced from reputable brands, and customers may specify preferred brands as required.
Description
Main Features
- Compliant with GMP requirements and qualified for food hygiene certification.
- All material contact parts are made of 304 stainless steel, suitable for packaging mildly corrosive chemical products.
- Features PLC and touchscreen control system with stable operation, strong anti-interference capability, high weighing accuracy and intuitive HMI for easy operation.
- Filling weight supports stepless adjustment, and working modes can be switched freely. The system can store up to 10 sets of formula parameters.
- The filling screw is driven by a servo motor, boasting precise positioning, high accuracy, fast running speed, high torque, long service life, adjustable rotating speed and outstanding stability.
- Equipped with Taiwan-made maintenance-free gear motor for the mixing unit, which runs quietly, lasts long and requires no lifelong maintenance.
- Adopts weight feedback and specific gravity tracking technology to automatically adjust filling weight when changing materials.
- Fully sealed side-opening hopper combined with glass and stainless steel. Material status can be clearly observed with no dust leakage. The hopper is fitted with dust filters, and filling accessories come with dust removal systems to maintain a clean workshop environment.
- Quick-replace screw attachments enable versatile filling for materials ranging from ultra-fine powder to small granules.
- Containers are conveyed by slat chain conveyor and positioned via screw distribution, delivering a high degree of automation.
Item Value Model UF-FJ-100 Adaptation Specification 0-500g adjustable (with changeable screw attachments) Filling speed 40-80 cans/min (depending on material and filling capacity) Metering error ±0.5% Power supply 380V 50Hz Power 5 kW Contour dimension 2500×1200×2200 mm Weight 800 kg
