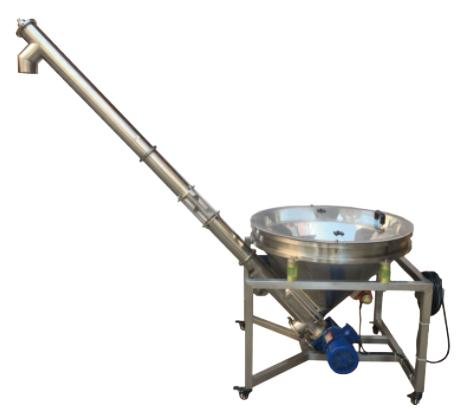

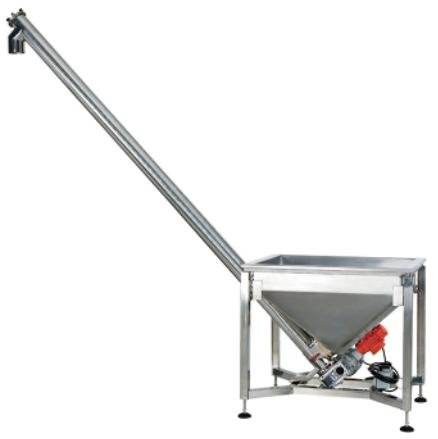

Screw Loading Hopper
Our Screw Loading Hopper transfers powder materials stably for filling machines. Built with SUS304 stainless steel, it meets GMP standard and supports customized lifting height and angle for your production line.
Description
Screw Loading Hopper
Our Screw Loading Hopper is widely used to convey powder and granular materials from storage bin to filling equipment. It delivers steady feeding performance for food, pharmaceutical and chemical processing lines. We adopt SUS304 stainless steel for all material‑contact components to satisfy GMP hygiene requirements.
Features
1.Lifting angle:45 degree,30‑60 degree can be customized;
2.Lifting height: 1.85 meters, 1‑5 meters can be customized;
3.Circular bin with vibration device;
4.Stainless steel structure, material contact part are SUS 304;
5.The feeding screw adopts three‑stage connection, which is easy to clean and disassemble, and conforms to the GMP standard.
Note: In addition to the above listed conveyors, we can also customize other conveyors according to your site layout.
Specifications
| Model | UF-SL-89 | UF-SL-102 | UF-SL-133 |
|---|---|---|---|
| Lifting speed | 1m³/h | 2m³/h | 4m³/h |
| Feeding pipe diameter | Φ89 | Φ102 | Φ133 |
| Power | 1.1KW | 1.1KW | 2.2KW |
| Weight | 100kg | 120kg | 150kg |
| Hopper volume | 100L | 140L | 140L |
Furthermore, this screw loading hopper reduces manual material handling and improves overall workshop efficiency. Quick‑disassembly screw structure helps operators finish cleaning work within short time, avoiding cross‑contamination between different batches. Multiple model options cover feeding capacity from 1m³/h up to 4m³/h to match different production output demands.
You may also view our automatic screw metering filling machine for complete powder packaging solution. Our engineering team offers technical support for installation, parameter setting and routine maintenance.
