UF‑420D High‑Speed Packaging Production Line
UF‑420D packaging production line for puffed snacks, nuts and seeds. High‑speed 9000‑12000 bags/hour, all‑in‑one automatic feeding, weighing and bag‑making. Request your quote.
Description

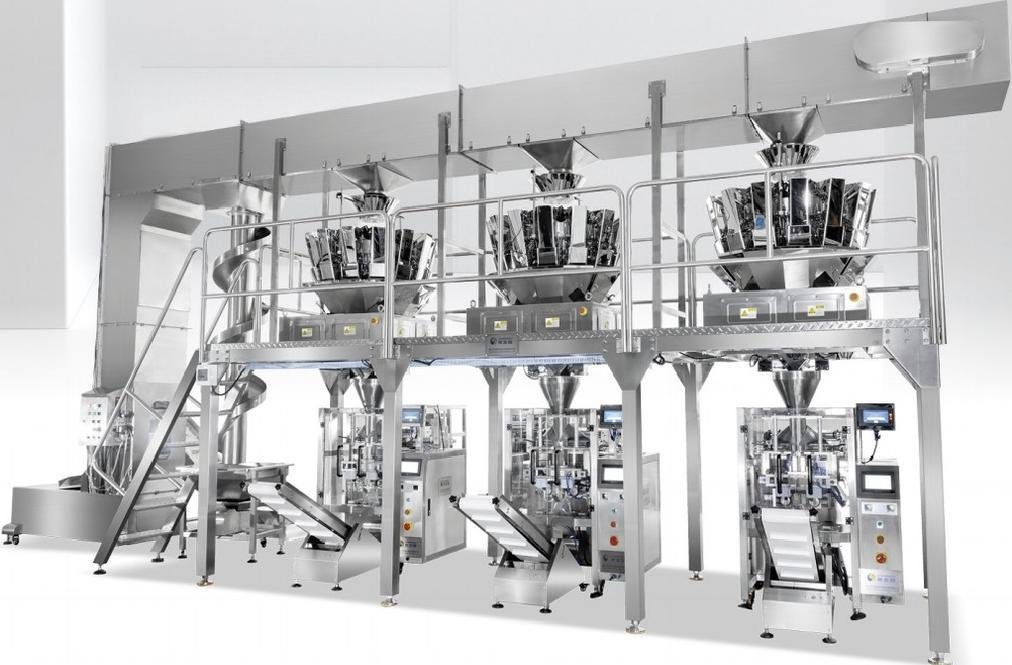

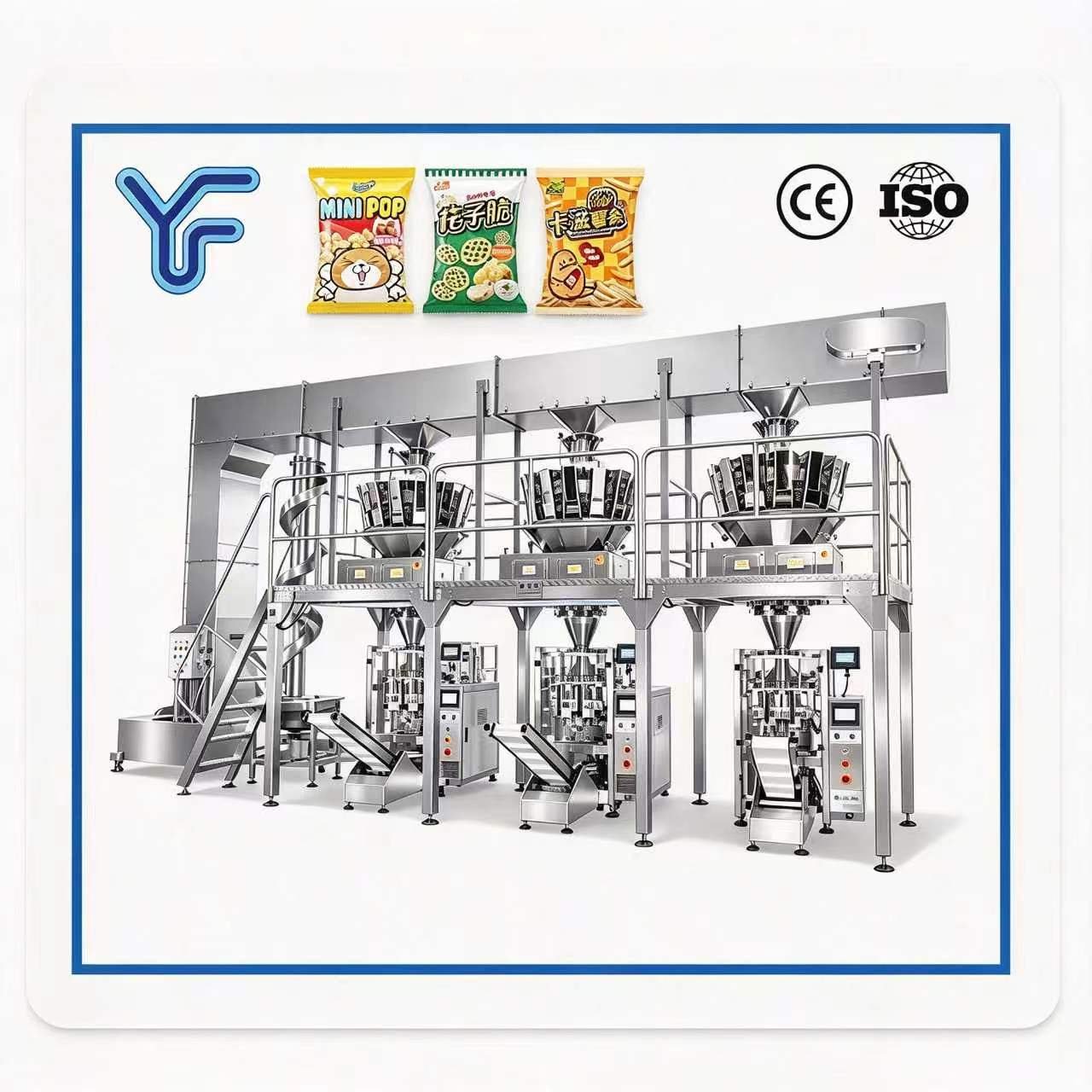

Our UF‑420D packaging production line is a fully‑automatic turn‑key packaging system built for small‑granule snack products. As one important unit under our Packaging Processing Lines, this line completes material feeding, recycling, weighing, bag‑making, coding and finished‑bag conveying in one integrated workflow. It greatly cuts manual operation and reduces material loss for snack manufacturers.
Product Application
Suitable Materials
This UF‑420D packaging production line works perfectly for small‑granule snack sachets, including puffed snacks, nuts, melon seeds and other granular leisure food. It supports multi‑style small pouch packaging for large‑volume mass snack production.
Key Features
1. Integrated feeding and material recycling design reduces operating costs and minimizes product waste.
2. Imported core configuration, double‑belt film pulling structure, precise sensor positioning and multi‑functional alarm protection system ensure long‑time stable continuous running.
3. High‑precision multi‑head combination scale, delivering fast packaging speed and accurate weighing to meet high‑volume factory production demands.
4. Full‑process automatic operation: feeding, recycling, metering, bag forming, coding and conveying are all finished automatically without frequent manual intervention.
| Item | Specifications |
|---|---|
| Model | UF‑420D |
| Bag Length | 80‑300mm |
| Bag Width | 50‑200mm |
| Max Film Width | 420mm(Max.) |
| Packing Speed | 9000‑12000 bags/hour |
| Gas Consumption | 2.5m³/min |
| Working Pressure | 2.4 Mpa |
| Working Power | 220V 50Hz single phase /380V 60Hz three phase, 15.5Kw |
| Package Film Material | OPP/CPP, OPP/CE, PE/PE etc. |
| Machine Dimension | 9050(L) ×2550(W) ×4050(H) mm |
| Net Weight | 4355kg |
| Optional Function | Inflate, punching, joint bag etc. |
Optional Customization
Optional functions include inflating, punching and joint‑bag processing to satisfy diversified pouch requirements for different snack factories.
Get Your Solution
If you are searching for high‑capacity automatic snack packaging equipment, please contact our sales page for detailed quotation and professional project consultation.
