UF-420D AIO ALL-IN-ONE PACKAGING MACHINERY

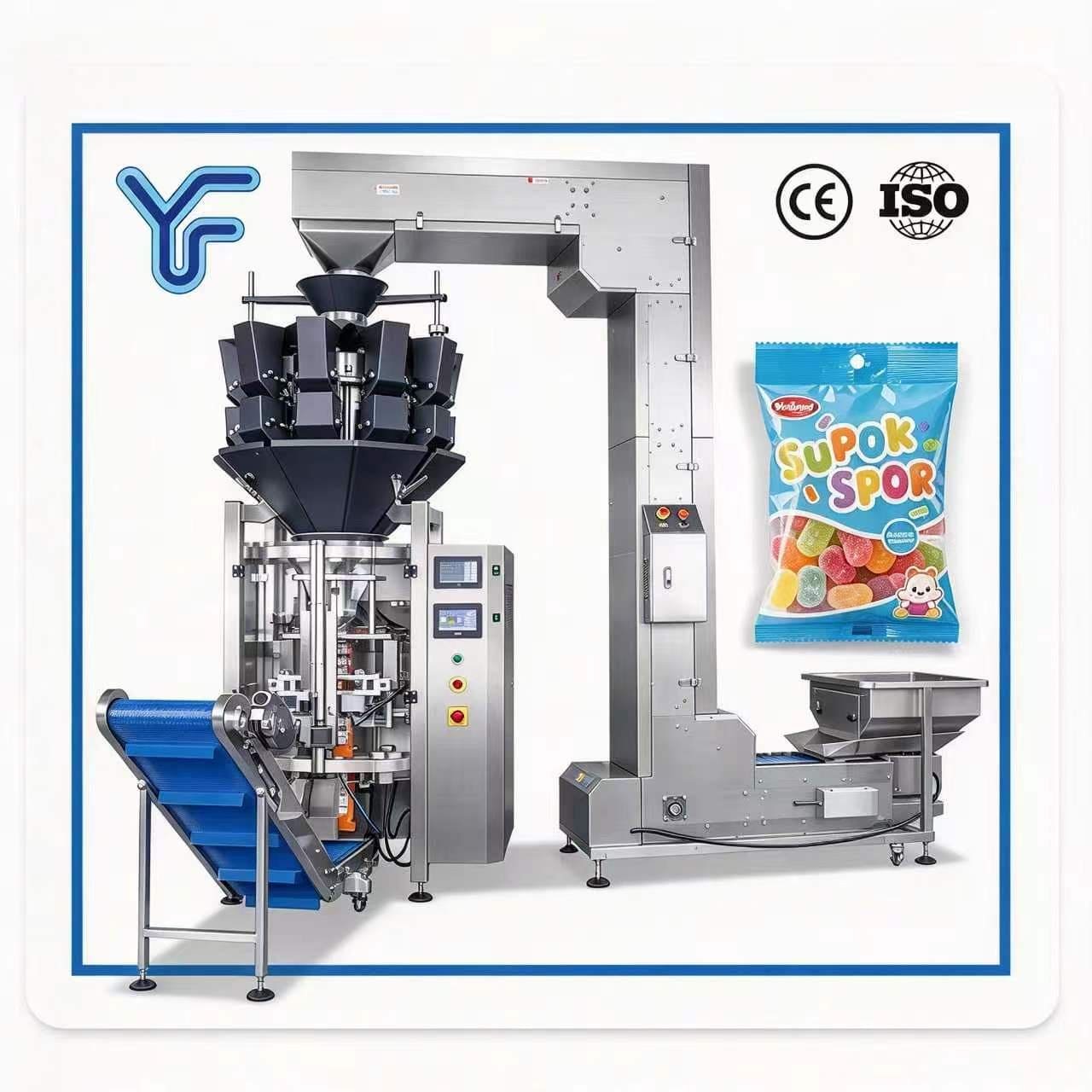

UF-420D AIO all-in-one packaging machinery, vertical form fill seal packing machine equipped with multihead weigher and Z elevator. Ideal for soft & sticky materials such as gummy candy, cheese ball, cotton candy, preserved fruits. Speed up to 3000 bags/hour, CE & ISO certified. Optional inflate, punching, joint bag functions.
Description
Product Application
The UF-420D all-in-one packaging machine is suitable for weighing and packaging soft and sticky materials, such as gummy candy, cheese ball, cotton candy, preserved fruits and similar sticky food products.
Features
- Brand PLC, color touch screen, multi-language interface, simple and convenient operation.
- Imported servo film pulling system, high sensitive photoelectric tracking for precise bag positioning.
- Multi-functional alarm protection system to minimize loss and improve safety during operation.
- The whole machine adopts fully stainless steel structure, economical and practical.
- The combination scale surface is coated with Teflon, improving material fluidity and effectively preventing material sticking.
Technical Parameters
| Item | Specification |
|---|---|
| Model | UF-420D |
| Bag Length | 80–400mm |
| Bag Width | 50–200mm |
| Max Film Width | 420mm |
| Packing Speed | 1800–3000 bags/hour |
| Gas Consumption | 0.8 m³/min |
| Working Pressure | 0.8 Mpa |
| Working Power | 220V 50Hz single phase /380V 60Hz three phase, 5.5kW |
| Package Film | OPP/CPP, OPP/PE, PET/PE etc. |
| Machine Size | 4588(L) ×1235(W) ×2590(H) mm |
| Net Weight | 1605 kg |
| Optional | Inflate, punching, joint bag etc. |
