Double-Sided Labeling Machine

Description

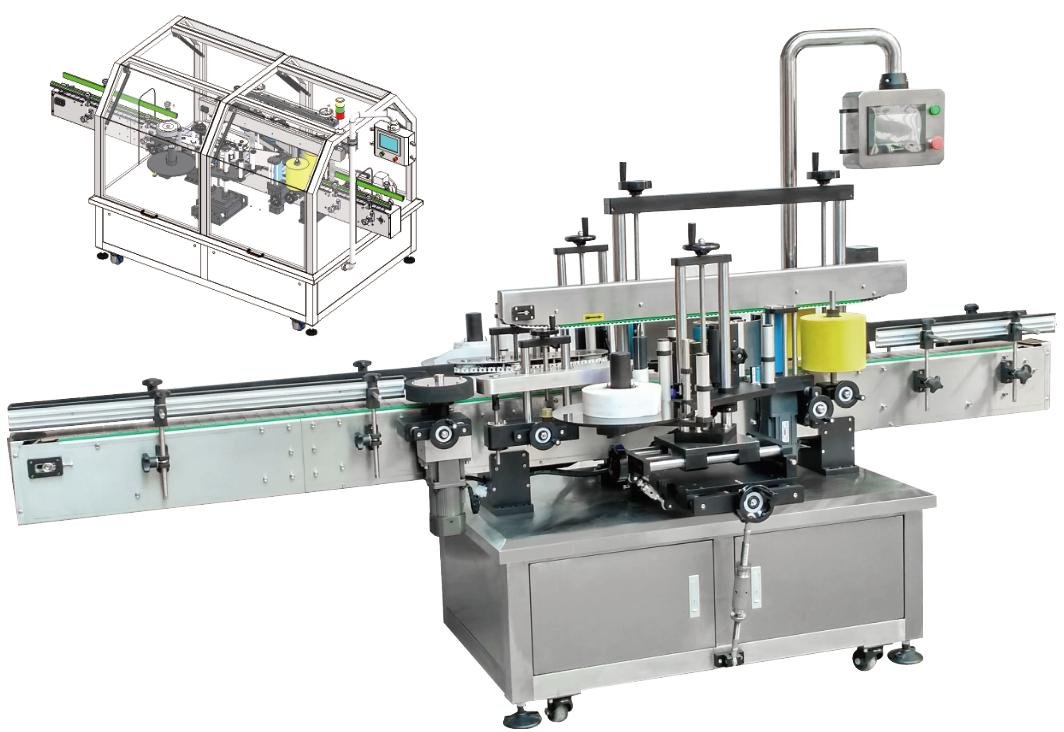

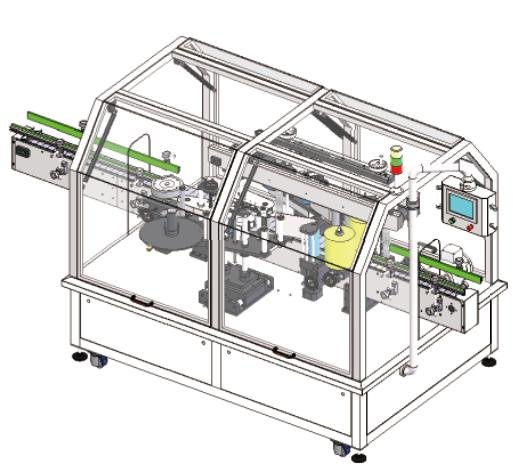

UFTB-1540 Multi-Function Double Sided Labeling Machine Introduction

This all-in-one labeling machine supports single-sided and double-sided high-precision labeling for flat bottles. An optional independent round bottle labeling unit can be equipped to realize positioning labeling for round bottles, square bottles and irregular-shaped containers. It is capable of three-sided or four-sided wrapping labeling on square products, greatly expanding production applicability and realizing multi-purpose operation with single equipment.

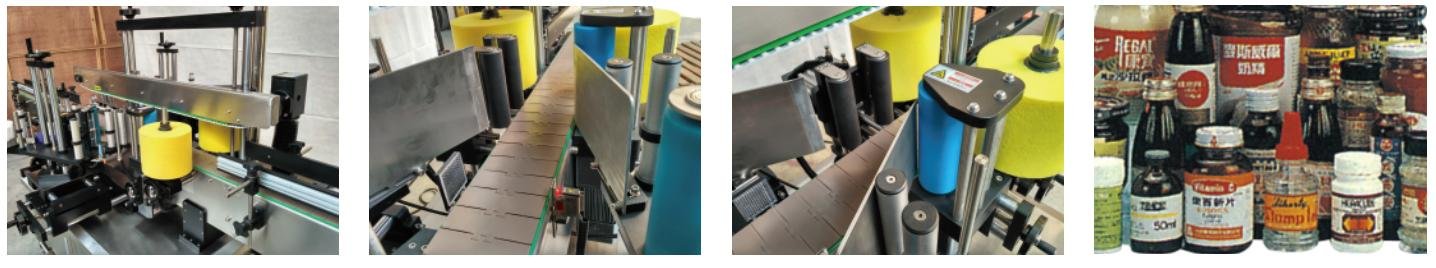

## Label Head Mechanism Advantages
1. 8-dimensional spatial adjustment structure for precise positioning and tilt fine-tuning of labeling head.
2. Horizontal translation of labeling head enables micro-adjustment of sticker position during operation.
3. All regulating assemblies support quick adjustment to save setup time.
4. Pressure roller design improves label tension, perfectly suitable for ultra-thin label dispensing.
5. All structural parts are CNC machined with high-precision matching to guarantee stable equipment accuracy.
6. Label clutch maintains steady tension and smooth running; three-point vertical adjustment makes tuning more fluent and label plate stable.
7. Special scraper support for convenient disassembly and adjustment.

## Compression Belt Mechanism Advantages
1. Main motor gear drive increases torque and reduces transmission clearance to guarantee labeling precision.
2. Split pressure belt cushion for heat dissipation, with adjustable pressure settings for different production stations.
3. Large-span supporting frame, double synchronous screw adjustment for synchronized belt calibration.
4. Built-in belt buffer slider to reduce abrasion and extend service life.
5. Wide height adjustment range of 0–400mm for fast product format switching.

## Shaping Mechanism Advantages
1. Full mechanical synchronous drive for conveying line, pressure belt and shaping belt, stepless speed regulation driven by single high-power motor.
2. Spiral bevel gear drive enhances equipment operation safety.
3. Two-dimensional space adjustment expands applicable product range.
4. Polymer material chain ensures stable shaping accuracy.

## Conveyor Mechanism Advantages
1. High-precision conveyor strip realizes absolute synchronization between conveying line and compression belt.
2. Wide belt design with high-power drive expands applicable product range, improves conveying inertia and achieves higher labeling accuracy.

## Positioning Mechanism Advantages

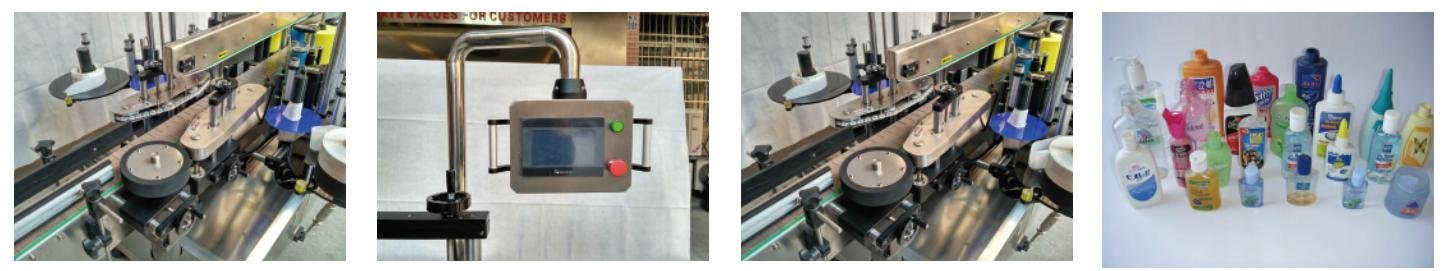

Automatic bottle correction secondary positioning system, the core highlight of double-sided labelers, completely solving labeling difficulties for special-shaped bottles. According to the cross-section features of workpieces, multi-group adjustable positioning fixtures fix all bottles to unified upper & lower position, then convey at the same linear speed as conveyor for accurate positioning between pressure belt and conveying line.

## Optional Round Bottle Labeling Unit Advantages
1. Special round bottle attachment realizes positioning & high-speed precise circumferential labeling.
2. Quick disassembly and replacement, easy switching between flat bottles and round bottles, shortens format change time and boosts production efficiency.

Core Advantages Summary

• Multi-functional combo: flat single/double side, round bottle, square 3/4-side wrapping, irregular container labeling
• 8D adjustable servo labeling head, labeling accuracy ±1mm
• Independent secondary correction positioning system for special-shaped bottles
• Fully synchronous mechanical transmission, stepless speed regulation 10–40 m/min
• Optional detachable round bottle labeling module for flexible production switching
• All quick-adjustment mechanisms to reduce format change downtime

Technical Parameters

Specifications	UFTB-1540
Model	UFTB-1540
Max labeling speed	10–40 meters/min
Labeling accuracy	±1mm
Max label width	200mm
Applicable workpiece dimension	Height ≤400mm, thickness ≤100mm (custom size available)
Label roll inner diameter	φ76.2mm
Max label roll outer diameter	φ350mm
Air source requirement	6 kgf/cm²
Overall Dimension(L×W×H)	3050×1450×1800mm
Supply Voltage & Power	220V, 50Hz, 3000W
Net Weight	500kg
