Mobile Labeling Machine

Description

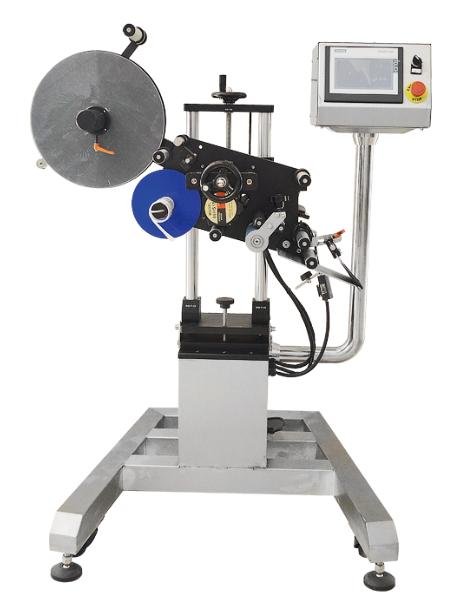

UFTB-280 Automatic Mobile Round Bottle Labeling Machine Introduction

This mobile labeling machine is designed for self-adhesive roll labels, supporting both flat pressing and rolling labeling modes for cylindrical bottles.
Optional automatic bottle feeding and collecting attachments are available to realize feeding, labeling and discharging in one continuous workflow. A matching printing unit can be equipped to finish label printing synchronously during labeling.

It adopts fiber optic synchronous tracking control system. The labeling head is driven by stepper motor to keep label dispensing speed fully synchronized with bottle rotating speed. As a fully integrated mechatronic packaging device, it delivers stable, consistent and reliable long-run performance.

Self-adhesive labeling brings multiple advantages: clean and mildew-free surface, neat & firm label adhesion without peeling off automatically, plus high continuous production efficiency.

Core Advantages

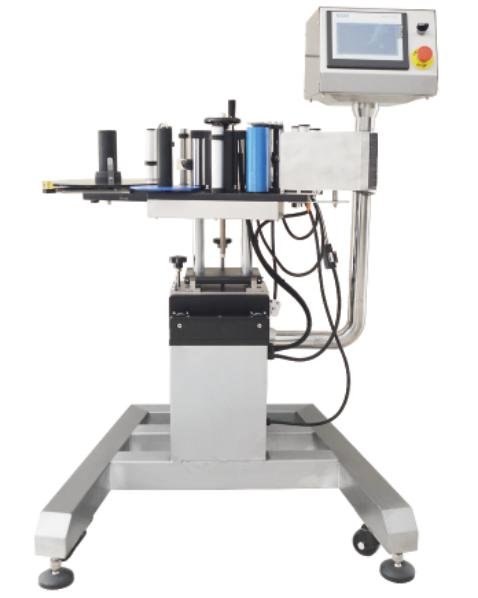

• Dual labeling modes: flat pressing & rolling for round bottles
• Fiber optic synchronous tracking + stepper motor speed synchronization
• Optional auto bottle feeder, collector and synchronous printing device
• Wide compatible range for bottle diameter φ12–φ100mm, height 30–200mm
• Adjustable label size: height 15–100mm, length 20–300mm
• Stable labeling, clean sanitary finish, high output up to 120 bottles/min
• Dual voltage support: 220V 50Hz / 110V 60Hz

Technical Parameters

Specifications	UFTB-280
Model	UFTB-280
Supply Voltage	AC 220V/50Hz, 110V/60Hz
Total Power	1200W
Applicable bottle dimension	Diameter φ12–φ100mm, height 30–200mm
Applicable label size	Height 15–100mm, length 20–300mm
Output capacity	30–120 bottles/min (depends on product & label size)
Overall Dimension(L×W×H)	400×400×1300mm
Net Weight	100kg
