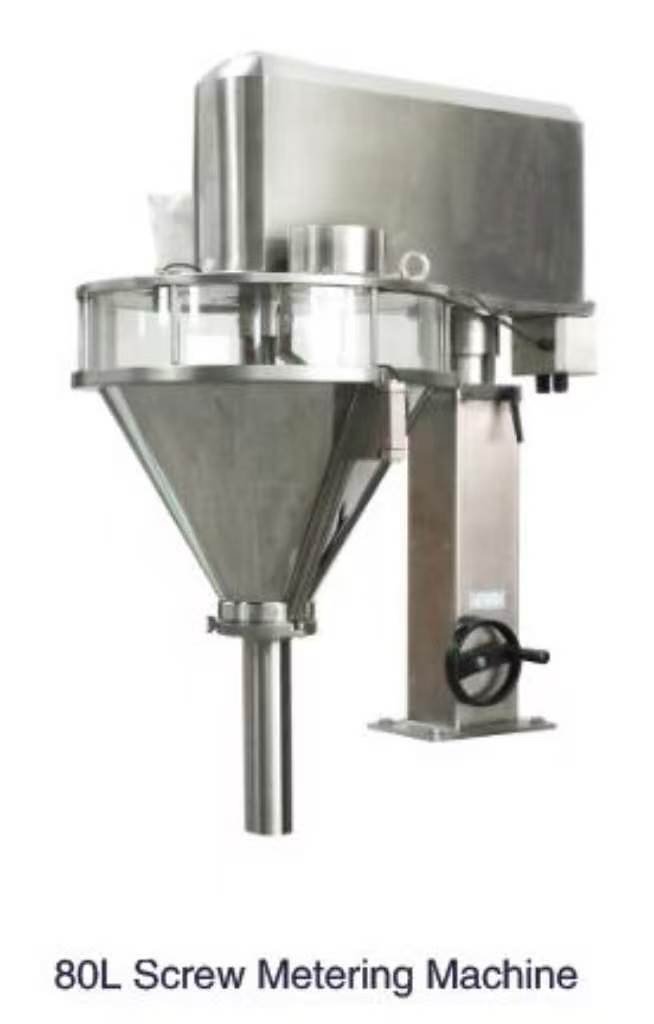

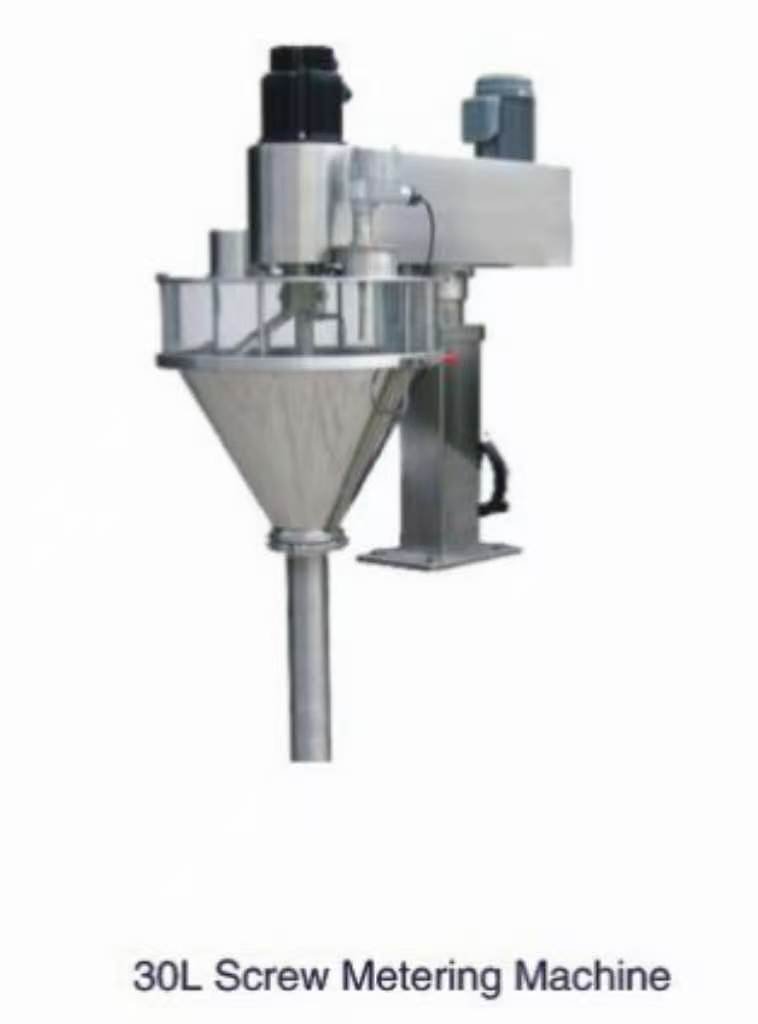

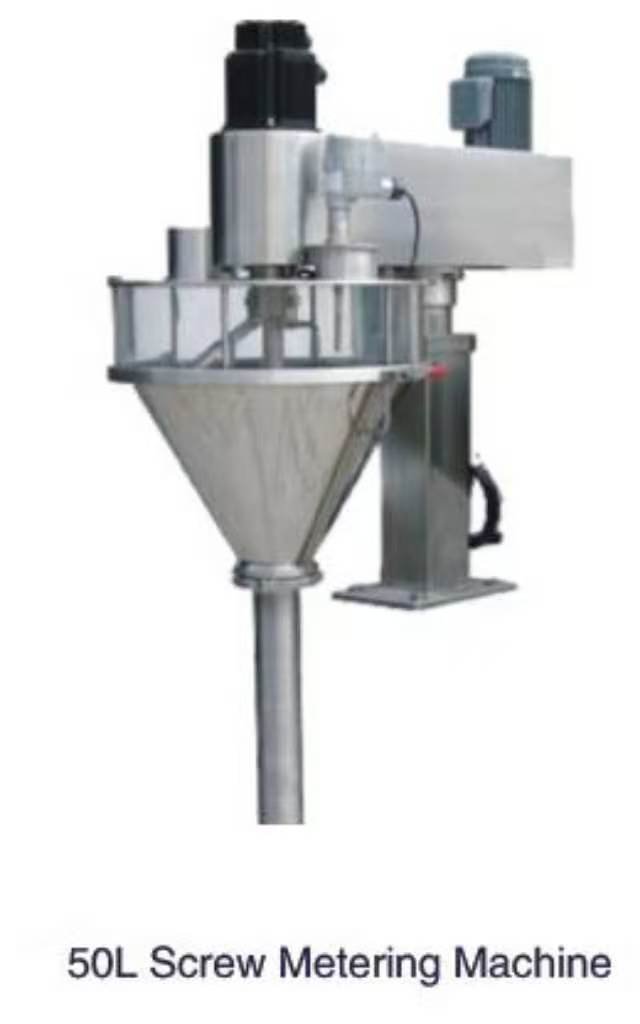

Screw Metering Machine
- Designed with principles of safety, hygiene, simplicity, durability and aesthetic appearance.
- Modular hopper for tool-free disassembly and easy cleaning.
- Equipped with servo motor and servo-driven screw for high dosing accuracy, long service life and low noise, fully compliant with GMP standards.
- All-stainless steel construction; all product contact parts made of SUS304 stainless steel.
- Built-in height adjustment handwheel for easy and quick height adjustment of the whole machine.
- Interchangeable screw attachments available to handle a wide range of materials from ultra-fine powder to small granules.
Description
Application
This screw dosing machine is capable of automatic weighing and filling. It is ideal for both free-flowing and non-free-flowing powder and granular materials, including milk powder, protein powder, flour, solid beverages, cocoa powder, chicken powder, sugar, glucose, food additives, feed, pharmaceutical raw materials, pesticides, dyestuffs, flavors and fragrances.
Specifications
| Parameter | RF-30L | RF-50L | RF-80L |
|---|---|---|---|
| Model | RF-30L | RF-50L | RF-80L |
| Material Hopper | Combined material hopper 30L | Combined material hopper 50L | Combined material hopper 80L |
| Packing Weight | 1-200g | 50-8000g | 5kg-25kg |
| Packing Accuracy | ≤100g: ±2%; 100-200g: ±1% | <100g: ±2%; 100-500g: ±1%; >500g: ±0.5% | 5kg-10kg: ±0.5%; 10kg-25kg: ±0.3% |
| Screw Diameter | φ20mm, 1-30g; φ28mm, 50-100g / φ38mm, 100-100g | φ57mm, 500-1000g / φ76mm, 1000-8000g | φ86mm, 5kg-10kg / φ102mm, 10kg-250kg |
| Packing Speed | 40-120 times/min | 40-120 times/min | 40-120 times/min |
| Voltage | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
| Power | 1.2Kw | 1.9Kw | 2.75Kw |
| Weight | 140kg | 180kg | 210kg |
| Dimension | 648x506x1025mm | 878x613x1227mm | 1141x838x1304mm |
