UF Series Automatic Vertical Packaging Machine(Electronic Weighing Packaging Metering)
Uniflow UF-420D screw metering vertical packaging machine for powder products. It adopts high-precision screw dosing system, Mitsubishi PLC & Weinview touch screen, supports multiple pouch styles, IP65 & CE certified, with optional printing and sorting attachments.
Description
UF-420D Screw Metering Vertical Packaging Machine Introduction
Our screw metering vertical form fill seal machine is specially designed for powder materials, equipped with high-precision screw dosing system, stable Mitsubishi PLC and Weinview touch screen control. It supports multi-bag styles and optional auxiliary equipment, meeting CE and IP65 industrial standards.
Core Screw Metering Advantages
- Dual-language touch panel, customizable multi-language operation interface
- 10 storable product formulas for quick product switching
- OMRON constant temperature control, sealing temperature error within ±2°C
- On-screen seal & deviation adjustment, no production halt needed
- Multiple sealing tooth types optional: cross grain, straight grain, twill, mesh
- IP65 full waterproof & dustproof electric cabinet, CE certified
- High-precision weighing sensor for accurate powder metering
- Compact top-mounted screw filler, wide equipment compatibility
Technical Parameters
| Specifications | UF-420D |
|---|---|
| Model | UF-420D |
| Packing speed | 45-50 bags/min |
| Bag size | Length: 50-300mm, Width: 50-220mm |

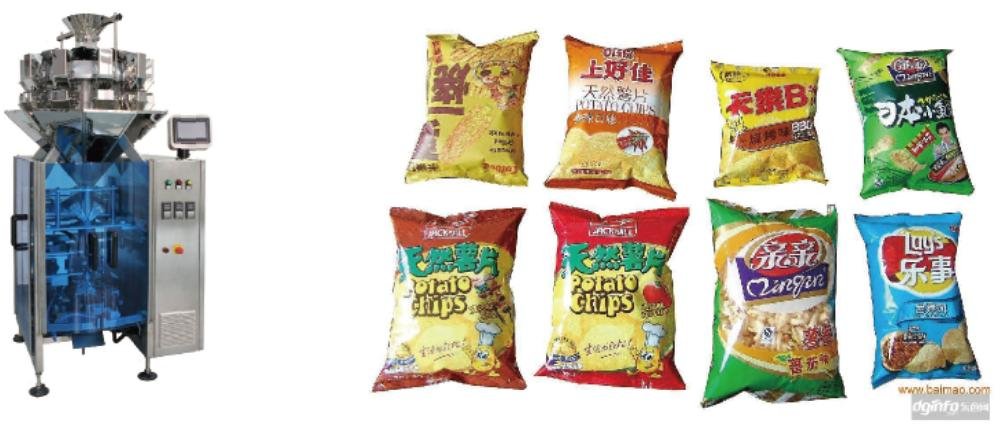

| Bag form | Pillow bag, triangle bag, perforated bag, inflatable bag |
| Max film width | 460mm |
| Film thickness | 0.04-0.9mm |
| Gas consumption | 0.5m³/min, 0.8MPa |
| Voltage & Power | 220V 50Hz, 2.2KW |
| Overall dimension | L1830 × W1369 × H2671.5mm |
| Net Weight | 877kg |
