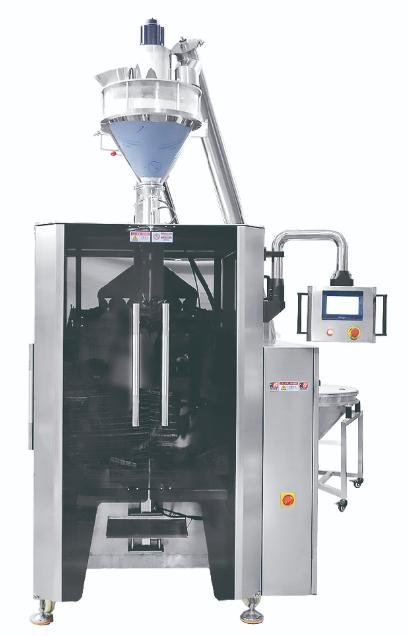

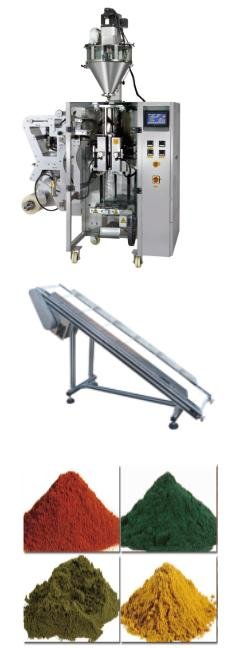

UF Series Automatic Vertical Packaging Machine(Screw Metering)
1.Full Chinese (or English) display (country language can be set accord-ing to customer requirements)
2.Taiwan weinview touch screen clearly displays the working status, operation indicator light, easy to
operate;
3.Mitsubishi PLC provides stable working procedures;
4.Preset 10 product formulations for quick replacement packaging
5.OMRON intelligent thermostat, temperature difference can be controlledwithin 2 degrees；
6.Without stopping, can adjust the position of sealing and cutting directly on the touch screen, correct
deviation and so on;
7.With transverse teeth sealing, packaging is more solid; also can choose straight, twill,mesh, etc. 8.Can adopt CE installation standard, electric box protection standardcan reach IP65;
9.The packaging machine can make a variety of bag types, such as: flat bag (back seal, three side seal and
four side seal). stereoscopic bag (socket self-supporting bag, triangle bag) handbag, punching bag;
Description
FEATURES OF UF SERIES SCREW METERING VERTICAL PACKAGING MACHINE
- Multilingual touch screen display, customizable for global customer language demands. Taiwan Weinview touch panel clearly shows all running statuses with indicator lights for simple operation.
- Adopts Mitsubishi PLC to guarantee stable whole working procedures.
- Pre-stores formulas for 10 different products, fast to switch packaging specifications.
- Equipped with OMRON intelligent thermostat, temperature control tolerance within 2℃.
- Adjust sealing position and cutting parameters directly on touch screen without machine stop, easy deviation correction.
- Cross grain sealing structure for firmer bags; optional straight, twill, mesh sealing patterns.
- CE certified machine, electrical cabinet protection grade reaches IP65.
- Produces diverse pouch styles: flat back seal bag, 3-side seal, 4-side seal, stand-up socket bag, triangle bag, handbag, punching hole bag.

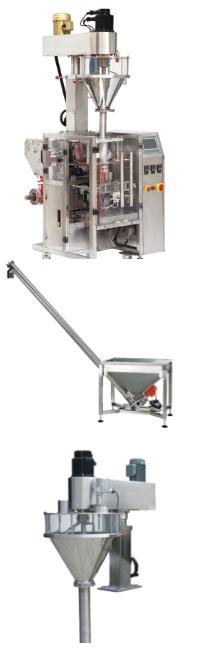

- Screw metering system fits free-flow & poor-fluidity powder, completes measuring, filling and nitrogen flushing. Driven by servo motor for precise filling volume; stainless steel open hopper easy to clean, meets food & hygiene standards. Rotary screw feeding + independent stirring system features fast response, high measuring accuracy and stable running performance.
Specifications
| Model | UF-420C | UF-520C | UF-720C |
|---|---|---|---|
| Bag length | 60-300mm (L) | 80-400mm (L) | 100-480mm (L) |
| Bag width | 100-200mm (W) | 150-250mm (W) | 180-320mm (W) |
| Max width of roll film | 420mm | 520mm | 680mm |
| Packing speed | 5-60bags/min | 5-50bags/min | 5-50bags/min |
| Measuring range | According to product specific gravity | According to product specific gravity | According to product specific gravity |
| Air consumption | 0.65Mpa | 0.65Mpa | 0.65Mpa |
| Gas consumption | 0.6m3/min | 0.7m3/min | 0.8m3/min |
| Power voltage | 220VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
| Power | 3Kw | 4Kw | 5Kw |
| Contour dimension | 1388Lx1116Wx1536H | 1150Lx1795Wx1650H | 1600Lx1530Wx2110H |
| Weight | 500Kg | 600Kg | 850Kg |
