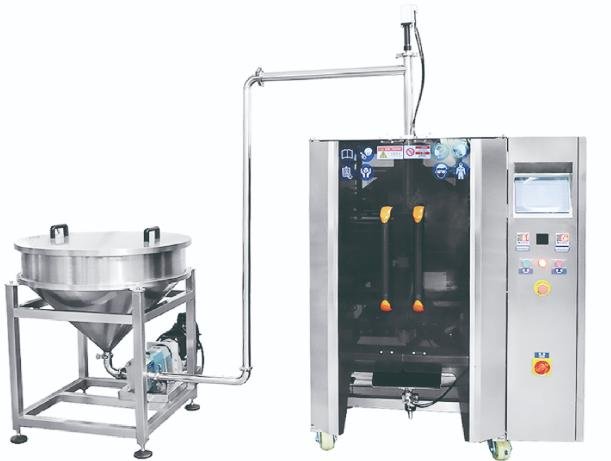

Fully Automatic Packaging Machine
Uniflow vertical form fill seal machine for food powder & granular packaging. Equipped with Weinview touch screen and Mitsubishi PLC controller, supports multiple pouch styles and interchangeable volumetric/screw/combination weighing filling systems, CE & IP65 protection standard.
Description
FEATURES
- Full English / Chinese bilingual display; multi-language interface customizable per client demand
- Equipped with Taiwan Weinview touchscreen, clearly displaying real-time working status & indicator lights for intuitive, simple operation
- Controlled by Mitsubishi PLC for stable, reliable running programs
- Stores up to 10 customizable product formulas to enable fast product changeover for different packaging runs
- Fitted with Omron smart temperature controller, maintaining temperature deviation within 2°C
- Seal-cut position adjustment and web deviation correction available directly via touchscreen without machine shutdown
- Standard cross-rib sealing jaws deliver tight, leak-proof seals; straight grain, twill and mesh sealing jaws are optional upgrades
- Manufactured to CE installation standards; electrical control cabinet reaches IP65 protection rating
- Supports production of multiple pouch styles:Flat pouches (back seal, 3-side seal, 4-side seal), 3D stand-up pouches (socket stand bags, triangle pouches), handle bags, punch-hole pouches
- Custom punch hole shapes can be engineered to match your packaging requirements
- Special creasing device creates crisp, sharp pouch edges; one-way degassing valves can be pre-installed on every bag for gas-releasing products
- Heavy-duty supporting discharge device holds overweight products during packaging, then automatically conveys finished pouches out to avoid poor sealing results
- Optional vibrating compactor solves packing issues for ultra-fluffy light materials with small pouch sizes
- Special sealing attachment available for single-layer PE packaging film
- Rotary volumetric fillers, piston fillers, screw dosing fillers, multi-head combination electronic weighers
Specifications
| Model | UF-320 | UF-420 |
| Bag length | 50-200mm ( L ) | 60-300mm ( L ) |
| Bag width | 50-150mm ( W ) | 100-200mm ( W ) |
| Max width of roll film | 320mm | 420mm |
| Packing speed | 8-60bags/min | 5-60bags/min |
| Measuring range | 800ml | 2500ml |
| Air consumption | 0.65Mpa | 0.65Mpa |
| Gas consumption | 0.6m³/min | 0.6m³/min |
| Power voltage | 220VAC/50Hz | 220VAC/50Hz |
| Power | 2.5Kw | 3Kw |
| Contour dimension | 1067x1026x1288mm | 1388x1116x1536mm |
| Weight | 300Kg | 500Kg |
