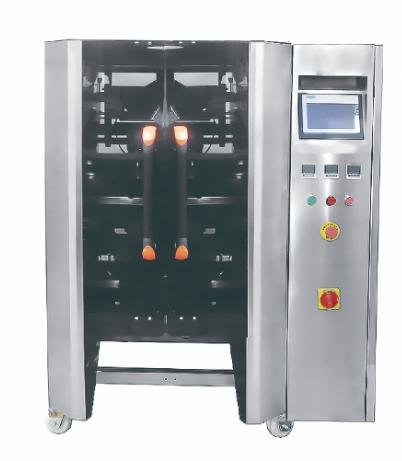

UF Automatic Vertical Bag Packing Machine

Features

1. Supports full Chinese or English display; multi-language interfaces for different countries can be customized as per client requests.
2. Equipped with Taiwan Weinview touch screen, which clearly shows all operating statuses & indicator lights, delivering simple and intuitive operation.
3. Adopts Mitsubishi PLC to ensure stable and reliable operation programs.
4. Stores up to 10 preset product formulas to realize fast product changeover for packaging runs.
5. Fitted with OMRON intelligent temperature controller, with temperature deviation controlled within ±2℃.
6. Sealing/cutting position adjustment and web deviation correction can be completed directly on the touch screen without machine shutdown.
7. Standard cross-tooth sealing delivers firm sealing performance; straight-tooth, diagonal-tooth and mesh-tooth sealing rollers are available as optional choices.
8. Complies with CE installation standards; the electrical control cabinet reaches IP65 protection grade.
9. This packaging machine supports multiple bag styles:
   • Flat bags: back-sealed, 3-side sealed, 4-side sealed
   • 3D stand-up bags: spout stand pouches, triangular pouches
   • Carry handle bags, hole-punched pouches
10. Custom punching hole shapes are available upon customer’s design demands.
11. A dedicated creasing device is equipped to form sharp, crisp bag edges. For products that generate gas during storage, one-way degassing valves can be installed on every pouch.
12. Heavy-weight goods will compromise packaging quality. Our supporting discharge conveyor holds heavy products steadily and releases finished packs after sealing completion.
13. A vibration compactor is provided to solve issues caused by over-fluffy products matched with small-size pouches.
14. A special sealing unit for single-layer PE film is available as an optional attachment if you use monolayer PE packaging film


    Model	UF-520T	UF-720T
    Bag length	80-400mm (L)	100-450mm (L)
    Bag width	150-250mm (W)	180-320mm (W)
    Max width of roll film	520mm	720mm
    Packing speed	5-50 bags/min	5-50 bags/min
    Filling Range	6000mL	10L
    Working Air Pressure	0.65MPa	0.65MPa
    Air Consumption	0.7m³/min	0.8m³/min
    Power Voltage	220VAC/50Hz	220VAC/50Hz
    Power	4Kw	5Kw
    Overall Dimensions	1150L×1795W×1650H	1780L×1350W×1950H
    Net Weight	600Kg	750Kg
