FRW-200 Floor-standing Continuous Sealing Machine
FRW-200 floor-standing continuous sealing machine for plastic film and composite bags. Adjustable sealing speed 0–13m/min, seal width 6–13mm, suitable for film thickness 0.04–0.50mm. Ideal for food, pharmaceutical, chemical and agricultural packaging lines.
Description
Product Description

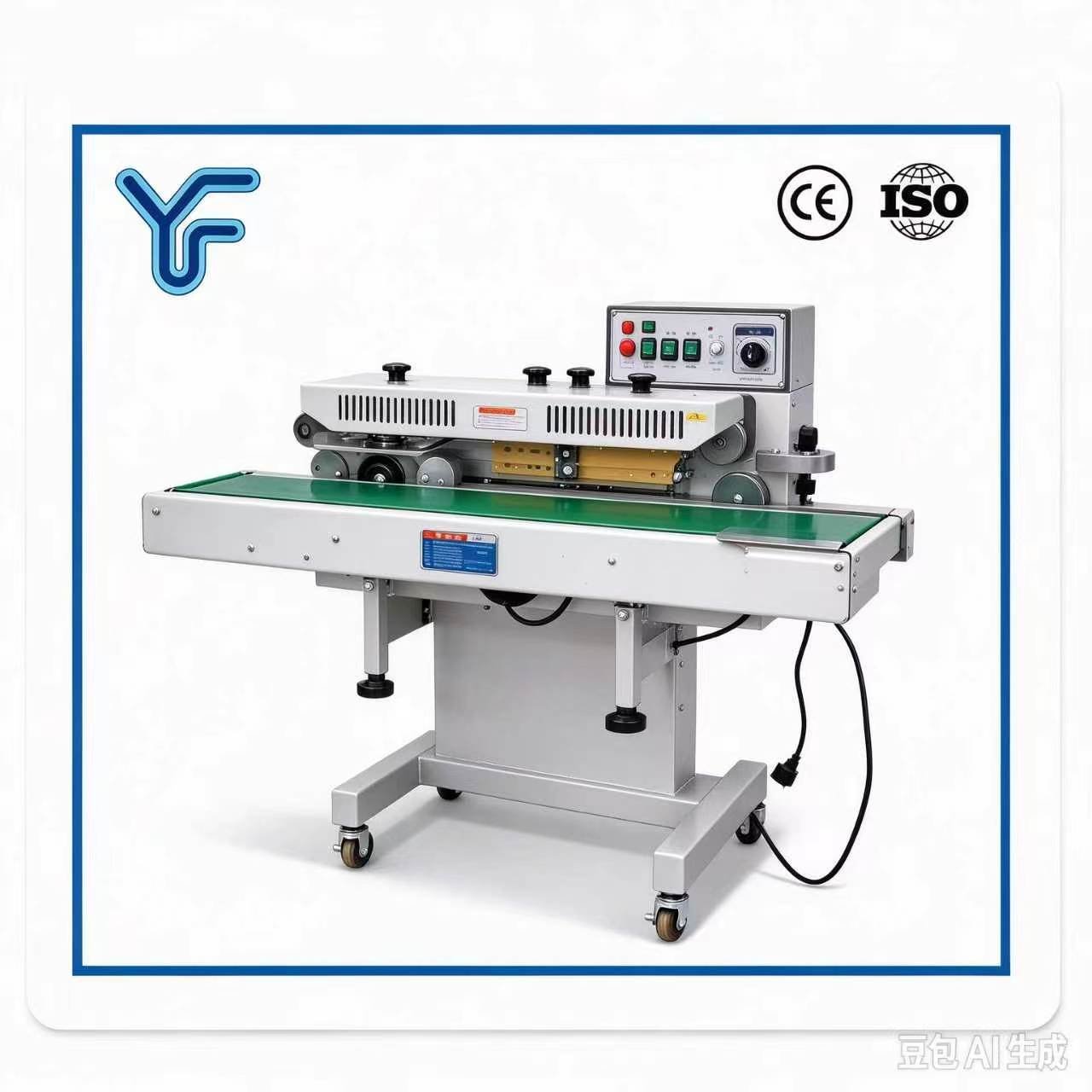

FRW-200 floor-standing continuous sealing machine is designed for continuous heat sealing of plastic films and composite bags. It adopts a vertical sealing structure with a stable conveyor system, suitable for food, pharmaceutical, chemical, agricultural and light industrial packaging lines.
The machine is equipped with a compact floor-standing frame and height-adjustable support legs, making it easy to integrate into production lines of different heights. It supports continuous conveying and stable sealing operation, helping improve packaging efficiency for medium and small bag products.
Main Features
-
Floor-Standing Continuous SealingSuitable for continuous sealing of plastic film and composite bags, stable operation for medium and small production lines.
-
Adjustable Conveyor HeightEquipped with adjustable support legs, the sealing height can be adapted to different production line requirements.
-
Stable Conveying SystemThe conveyor belt runs smoothly, ensuring bag alignment and consistent sealing quality during continuous operation.
-
Compact & Robust StructureIntegrated floor-standing design, small footprint, stable operation and easy installation.
-
Wide ApplicationSuitable for food, pharmaceutical, chemical, agricultural products, daily chemicals and other industries.
Technical Parameters
| Item | Specification |
|---|---|
| Model | FRW-200 |
| Power Supply | 110/220V, 50/60Hz |
| Power | 750W |
| Sealing Speed | 0–13m/min |
| Sealing Width | 6–13mm |
| Film Thickness | 0.04–0.50mm |
| Machine Dimensions | 1200 × 520 × 1280mm |
| Machine Weight | 98kg |
Applications
- Food industry: snack bags, seasoning bags, frozen food packaging, etc.
- Pharmaceutical industry: medicine bags, medical product packaging.
- Chemical industry: powder bags, additive bags, small composite bags.
- Agricultural industry: seed bags, grain bags, small fertilizer packaging.
- Light industry: daily chemical bags, hardware bags, plastic film bags.
FAQ
Q1: What bags can the FRW-200 seal?
A: It can seal plastic film bags and composite bags, suitable for food, pharmaceutical, chemical, agricultural and light industry packaging.
A: It can seal plastic film bags and composite bags, suitable for food, pharmaceutical, chemical, agricultural and light industry packaging.
Q2: What is the sealing speed?
A: The sealing speed is 0–13m/min, which can meet continuous sealing requirements of small and medium production lines.
A: The sealing speed is 0–13m/min, which can meet continuous sealing requirements of small and medium production lines.
Q3: Can it handle different film thicknesses?
A: Yes, it supports film thickness from 0.04mm to 0.50mm, suitable for various plastic and composite films.
A: Yes, it supports film thickness from 0.04mm to 0.50mm, suitable for various plastic and composite films.
Q4: Is the conveyor height adjustable?
A: Yes, the machine has adjustable support legs to adapt to different production line heights.
A: Yes, the machine has adjustable support legs to adapt to different production line heights.
Q5: What is the machine weight?
A: The machine weight is about 98kg, which is relatively stable and suitable for floor-standing use.
A: The machine weight is about 98kg, which is relatively stable and suitable for floor-standing use.
