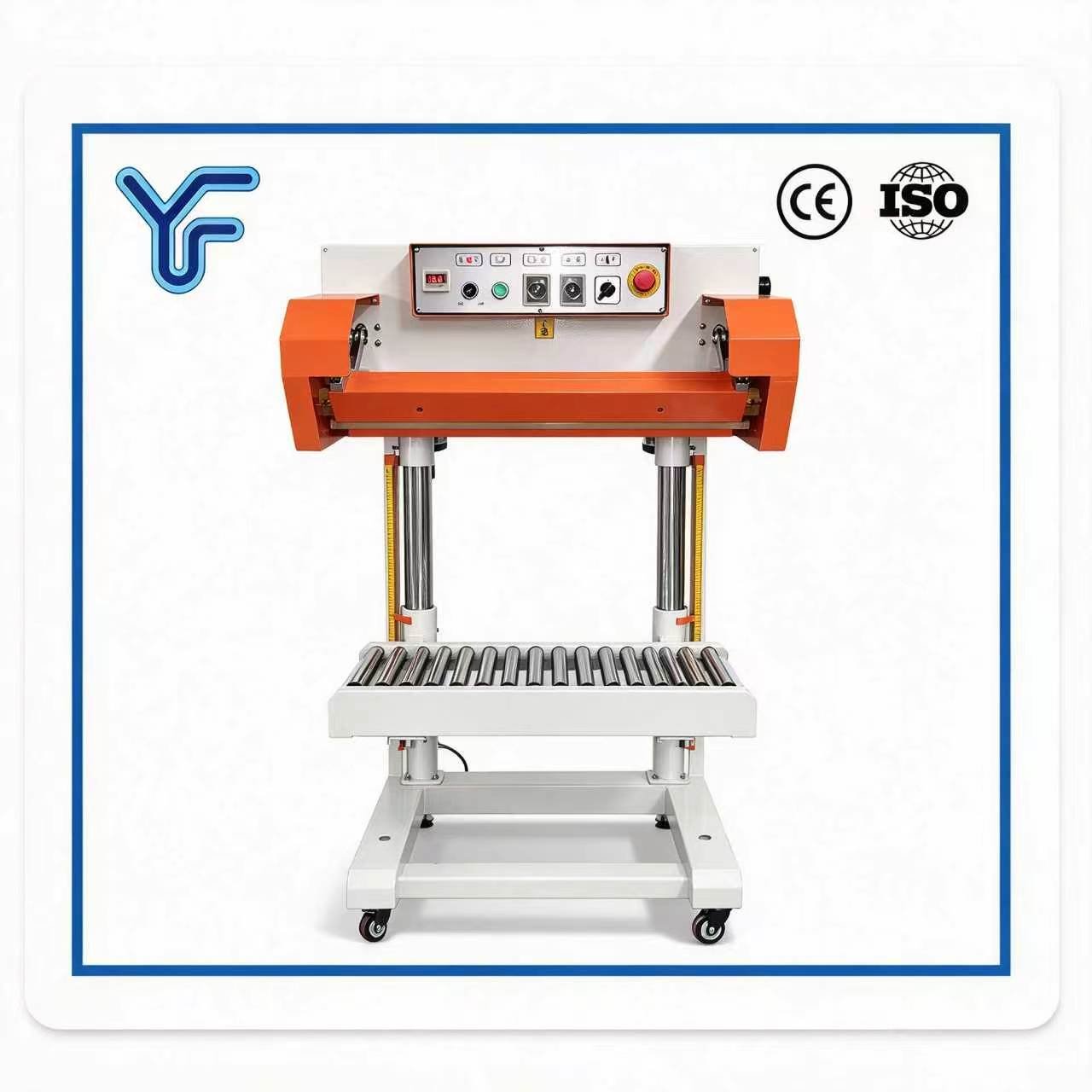

QLF700A Pneumatic Vertical Sealing Machine

QLF700A pneumatic vertical sealing machine adopts roller conveyor table, suitable for large and heavy‑weight bags up to 50kg. Max seal length 700mm, pneumatic forced cooling, single / double heating optional, widely used in grain, food, feed and chemical industries.

Category:

Description

Product Description

QLF700A pneumatic vertical sealing machine adopts vertical sealing structure with roller‑type conveying table, specially designed for large‑size or overweight bag packaging. It delivers powerful sealing capacity, easily seals single‑layer plastic film or composite bags with film thickness ≤0.2 mm.

Double‑heating version is available for special sealing demands, which can handle single‑layer film thickness over 0.2 mm.

Widely applied in chemical, grain, food and feed industries.

Key Features

  1. Neat & Firm Sealing Effect

    Pneumatic forced cooling after sealing shortens cooling cycle, improves sealing strength and obtains nice sealing appearance.

  2. Labor‑Saving Pneumatic Operation

    Vertical sealing structure plus roller conveyor greatly reduces operator workload. Mechanical lifting mechanism is equipped for products of different heights. Height scale enables fast adjustment to proper sealing position.

  3. Height‑Adjustable Roller Conveyor Table

    Adjust the conveyor height freely according to bag height to reach ideal sealing position.

  4. Simple Operation

    Trigger work by momentary button or foot pedal switch, time‑saving and labor‑saving.

  5. Single / Double Heating Optional Versions

    Single‑heating for ordinary bags; double‑heating for M‑shape bags.

  6. User‑Friendly Control Panel

    Concise control panel with counting function and emergency stop switch for safe and convenient operation.

Technical Parameters

Item Specification
Power Supply AC220V/50Hz
Heating Power 1.0KW
Max Sealing Length ≤700 mm
Packing Speed 0‑10 times/min
Sealing Time 0‑3 s
Cooling Time 0‑10 s
Working Air Pressure 4‑6 kg/c㎡
Single‑layer Film Thickness ≤0.2 mm
Conveyor Table Load Capacity ≤50 kg
Max Cumulative Count Value 99999 bags
Adjustable Press‑head Angle 20°
Overall Dimension(L×W×H) 830 × 685 × 1460 mm
Machine Weight 120 Kg

Frequently Asked Questions

Q1: What kind of bags can QLF700A seal?
A: It seals ordinary plastic film and composite bags with single‑layer thickness ≤0.2 mm. Choose double‑heating model for film thickness above 0.2 mm or M‑shape bags.
Q2: What is the maximum load for the roller conveyor table?
A: The conveyor table can bear max 50 kg, suitable for large‑size and overweight packaged goods.
Q3: Can I adjust sealing height for different bag sizes?
A: Yes. Equipped with mechanical lifting structure and height scale, you can adjust conveyor height freely.
Q4: How to trigger the machine to work?
A: It supports momentary push‑button control or foot pedal switch for easy operation.
Q5: What extra functions does the control panel have?
A: Built‑in bag counting function and emergency stop switch for safer production.
Q6: What industries is this machine suitable for?
A: Suitable for chemical, grain, food, feed and other industries for heavy‑bag sealing work.
